Variety is something to be embraced while riding off-road. The Tokul is designed to attack both the ups and downs found on today’s newer bike specific trails. With a roomy cockpit pedaling is made easy, while the longer travel fork and slackened geometry propel you down the trail. Versatile and playful these bikes are created to be more than your average hardtail. 27.5” wheels marry the benefits of 26” and 29er wheels. This tweener size is incredibly versatile in the varying conditions found on trails. It’s capable of rolling over rocks and roots with ease just like the larger 29er wheel, yet nimble in hard to navigate situations. These elements combine to make a wheel adept in any kind of terrain and in all conditions. The AL-6061 used to construct the frame provides a durable and lightweight platform for trail use. Promax hydraulic brakes and Shimano drivetrain provide the functionality and dependability needed for off road use. You’ll find size specific wider bars and a shorter stems for increased maneuverability and handling. Spec’d with a Suntour XCR 32, 120mm fork rough terrain is ready to be conquered.

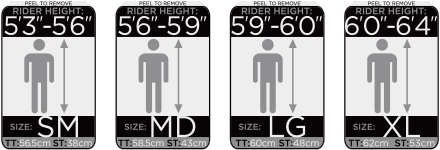

Size Guide: Tokul
|Seat Tube Length **||380.0mm||430.0mm||480.0mm||530.0mm|
|Top Tube Length *||565.0mm||585.0mm||600.0mm||620.0mm|
|Head Tube Length||105.0mm||110.0mm||130.0mm||150.0mm|
|Chain Stay Length||430.0mm||430.0mm||430.0mm||430.0mm|
|Seat Post Length||350.0mm||350.0mm||350.0mm||350.0mm|
* Measured Horizontally** Measured from Center
Technology: 2014 Tokul Series
Versatile, aggressive, and playful
The 6061 alloy used to create the frames provides a stiff and durable platform for trail use.TheTokul’s geometry gives the bike a stable yet agile ride. A low standover height and slacker headtube angle make rough terrain simply easier to navigate. When it comes to lifting the front wheel over objects on the trail the Tokul’s short rear-end allows you to wheelie with ease.This shorter chainstay also keeps the bike responsive in tight corners. A low bottom bracket centers your weight low in the bike making it easier to track in the corners and maintain control at speed.
Altogether, this concoction produces a bike capable of inducing the addictive ride that keeps you coming back for more.
120mm of FrOnT Suspension
We gave the alloyTokuls 120mm-travel forks for more control over rougher terrain.This unique spec provides the added suspension that makes these bikes even more capable of taking on challenging terrain. More fun is the end-goal and more travel helps get you there.
27.5 marries the benefits of 26 and 29er wheels.This tweener size is incredibly versatile in varying trail conditions. It’s capable of rolling over rocks and roots with ease just like the larger 29er wheel, yet nimble in hard-to-navigate situations.These elements combine to make a wheel adept in any kind of terrain and all conditions. TheTokul series has all-new light and stiff wheels with better hubs and wider rims. We gave them U28 disc-specific mountain rims that are 28mm wide.The wider rim cross section increases the tread contact patch and allows riders to run lower tire pressure, with less tire roll. Riders will be able to find more traction while cornering and corner with more confidence.You’ll find trail-ready Kenda or Schwalbe tires on our new wheels so you can continue to push the limits of traction.
Bars and Stems
We chose a wider bar at 720/700mm, with a 15mm rise to make the front end easier to get up and off the ground. A wider bar also helps keep you stable while navigating technical terrain and handles better at speed.To accompany these wider bars, we went with a shorter stem for better front-end handling.The combination of this stem and bar give you a playful advantage when the going gets tough. We don’t want the components to hold you back so, we’ve selected size-specific bars and stems per model.
|Sizes||SM MD LG XL|
|Frame||AL-6061 Custom Butted Aluminum, IS Disc Mount, Machined HT 1-1/8"|
|Fork||SR Suntour XCR 32, 27.5" 120mm, Lockout|
|Headset||FSA IS-3 45° upper, NO.11N Zerostack Lower, 1-1/8"|
|Cranks||Shimano FC-M391, 44/32/22t|
|Bottom Bracket||Shimano BB-UN26, 73x113|
|F. Derailleur||Shimano Altus|
|R. Derailleur||Shimano Alivio 9spd|
|Cogset||Shimano 11-32 9spd|
|Brakes||Promax Decipher Hydro Disc, 160mm Rotors|
|Brake Levers||Promax Decipher Hydro Disc|
|Front Hub||Joytech Disc QR 32h|
|Rear Hub||Joytech Disc QR 32h Cassette|
|Spokes||14g Stainless Steel, w/Brass Nipples|
|Rims||Weinmann U28, 27.5", 32h, 28mm wide|
|Tires||Schwalbe Rapid Rob Kevlar Guard, 27.5x2.25"|
|Handlebar||Raleigh 100 Series 31.8, 15mm Rise, Width:700/700/720/720mm|
|Grips||Raleigh Closed-end Single Lock Ring|
|Stem||Raleigh 100 Series, 31.8mm, Lengths:60/60/75/75mm|
|Seatpost||Raleigh 100 Series, Dual Bolt, 30.9x350mm|
|Seat||Raleigh Mountain Saddle|
|Note||Specifications Subject to Change|
