2014 Tokul 4130
2014 Tokul 4130

2014 Tokul 4130

Variety is something to be embraced while riding off-road. The Tokul is designed to attack both the ups and downs found on today’s newer bike specific trails. With a roomy cockpit pedaling is made easy, while the longer travel fork and slackened geometry propel you down the trail. Versatile and playful these bikes are created to be more than your average hardtail. 27.5” wheels marry the benefits of 26” and 29er wheels. This tweener size is incredibly versatile in the varying conditions found on trails. It’s capable of rolling over rocks and roots with ease just like the larger 29er wheel, yet nimble in hard to navigate situations. These elements combine to make a wheel adept in any kind of terrain and in all conditions. The 4130 Chromoly used to construct the frame provides a durable and compliant platform for trail use. We decided that a Shimano Zee drivetrain paired with an MRP All Mountain Guide would be the perfect solution for simple and dependable drivetrain. Spec’ed with a Fox 130mm CTD fork rough terrain is ready to be conquered.

Highlights
27.5" 4130 Cromo Frame with ISCG 05 Mounts
Full Shimano Zee Drivetrain w/ Shadow Plus Derailleur
Fox Float CTD fork with 130mm of travel
MRP All-Mountain Chainguide w/ built-in taco bash guard
U28 double wall rims with sealed cartridge bearing hubs

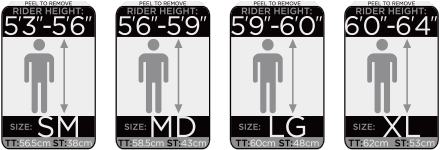

Size Guide: Tokul

Geometry

Size SM MD LG XL
Seat Tube Length ** 380.0mm 430.0mm 480.0mm 530.0mm
Standover Height 745.0mm 745.0mm 745.0mm 770.0mm
Top Tube Length * 565.0mm 585.0mm 600.0mm 620.0mm
Head Tube Length 90.0mm 100.0mm 120.0mm 140.0mm
Head Angle 69.0° 69.0° 69.0° 69.0°
Seat Angle 73.0° 73.0° 73.0° 73.0°
Chain Stay Length 430.0mm 430.0mm 430.0mm 430.0mm
Fork Offset 44.0mm 44.0mm 44.0mm 44.0mm
BB Drop 35.0mm 35.0mm 35.0mm 35.0mm
Stem Length 60.0mm 60.0mm 75.0mm 75.0mm
Handlebar Width 700.0mm 700.0mm 720.0mm 720.0mm
Crank Length 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Technology: 2014 Tokul Series

Versatile, aggressive, and playful

Alloy Frame

Alloy Frame

The 6061 alloy used to create the frames provides a stiff and durable platform for trail use.TheTokul’s geometry gives the bike a stable yet agile ride. A low standover height and slacker headtube angle make rough terrain simply easier to navigate. When it comes to lifting the front wheel over objects on the trail the Tokul’s short rear-end allows you to wheelie with ease.This shorter chainstay also keeps the bike responsive in tight corners. A low bottom bracket centers your weight low in the bike making it easier to track in the corners and maintain control at speed.

Altogether, this concoction produces a bike capable of inducing the addictive ride that keeps you coming back for more.

120mm of FrOnT Suspension

We gave the alloyTokuls 120mm-travel forks for more control over rougher terrain.This unique spec provides the added suspension that makes these bikes even more capable of taking on challenging terrain. More fun is the end-goal and more travel helps get you there.

Wheels

27.5 marries the benefits of 26 and 29er wheels.This tweener size is incredibly versatile in varying trail conditions. It’s capable of rolling over rocks and roots with ease just like the larger 29er wheel, yet nimble in hard-to-navigate situations.These elements combine to make a wheel adept in any kind of terrain and all conditions. TheTokul series has all-new light and stiff wheels with better hubs and wider rims. We gave them U28 disc-specific mountain rims that are 28mm wide.The wider rim cross section increases the tread contact patch and allows riders to run lower tire pressure, with less tire roll. Riders will be able to find more traction while cornering and corner with more confidence.You’ll find trail-ready Kenda or Schwalbe tires on our new wheels so you can continue to push the limits of traction.

Wheels

Bars and Stems

We chose a wider bar at 720/700mm, with a 15mm rise to make the front end easier to get up and off the ground. A wider bar also helps keep you stable while navigating technical terrain and handles better at speed.To accompany these wider bars, we went with a shorter stem for better front-end handling.The combination of this stem and bar give you a playful advantage when the going gets tough. We don’t want the components to hold you back so, we’ve selected size-specific bars and stems per model.

Specs
Sizes SM  MD  LG  XL
Frame 4130 Butted Chromoly w/CNC Dropouts, ISCG 05 Tabs, 1-1/8" HT
Fork Fox 32 Float CTD 130mm w/15mm Thru Axle
Headset FPD Sealed Bearing Ahead 1-1/8"
Cranks Shimano Zee FC-M640, Zee 34t Single Ring
Bottom Bracket Shimano External
F. Derailleur MRP All Mountain Guide ISCG05, with Taco Bash Guard
R. Derailleur Shimano Zee RD-M640 Shadow Plus
Shifter Shimano Zee SL-M640 10spd
Cogset Shimano HG62 11-36t 10 spd
Chain KMC 10 spd
Brakes Shimano 505 Hydraulic w/SMRT56, 180/160mm Rotors
Brake Levers Shimano 505 Hydraulic
Front Hub Novatech D711SB-15 Alloy Disc Sealed Bearing, 15mm QR, 32h
Rear Hub Joytech D712SB-AA Alloy Disc, Sealed Bearing, 135mm Cassette, QR, 32h
Spokes 14g Stainless MAC w/Brass Nipples
Rims Weinmann U28, 27.5", 32h, 28mm wide
Tires Schwalbe Hans Dampf Performance 27.5x2.35
Handlebar Raleigh 100 Series 31.8, 15mm Rise, Width: 700/700/720/720mm
Grips Raleigh Closed-end Single Lock Ring
Stem Raleigh 100 Series, 31.8mm, Lengths: 60/60/75/75mm
Seatpost Raleigh 2014 Alloy Dual Bolt 27.2x350mm, 20mm Offset
Seat Raleigh Mountain Saddle
Colors Lime
Note Specifications Subject to Change
