2014 XXIX
2014 XXIX

2014 XXIX

A single speed destined for singletrack. The XXIX is equipped with a Gates Center Track belt making the drivetrain nearly maintenance free. Shimano hydraulic disc brakes and a Fox Float 29 CTD make this humble machine trail ready.

Highlights
4130 Chromoly frame
Gates Center Track Belt Drive
Fox Float 32 CTD 100mm
Shimano hydraulic brakes
U28 29" double wall wheels feature wide rim technology for increased traction, durability

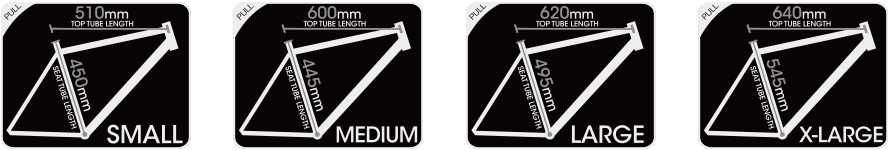

Size Guide: XXIX

Geometry

Size SM MD LG XL
Seat Tube Length ** 405.0mm 445.0mm 495.0mm 545.0mm
Standover Height 775.0mm 800.0mm 830.0mm 855.0mm
Top Tube Length * 580.0mm 600.0mm 620.0mm 640.0mm
Head Tube Length 90.0mm 100.0mm 110.0mm 115.0mm
Head Angle 71.0° 71.0° 71.0° 71.0°
Seat Angle 73.0° 73.0° 73.0° 73.0°
Chain Stay Length 444.0mm 444.0mm 444.0mm 444.0mm
Fork Offset 45.0mm 45.0mm 45.0mm 45.0mm
BB Drop 55.0mm 55.0mm 55.0mm 55.0mm
Stem Length 90.0mm 100.0mm 100.0mm 110.0mm
Handlebar Width 680.0mm 680.0mm 680.0mm 680.0mm
Crank Length 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes SM  MD  LG  XL
Frame 4130 Butted Chromoly, PF30 BB w/CNC Dropouts, Replaceable Insert
Fork Fox F29 CTD 100mm w/15mm Thru Axle
Headset Alloy Ahead 1-1/8
Cranks Forged 2pc 46t Gates Center Track Belt Drive Front Chainring
Bottom Bracket FSA PF30 Eccentric w/Sealed Bearings
F. Derailleur N/A
R. Derailleur N/A
Shifter N/A
Cogset 28T Gates Belt Drive
Chain Gates Belt Drive 118t
Brakes Shimano 505 Hydraulic w/SMRT56 2pc, 180/160mm Rotors
Brake Levers Shimano 505
Front Hub Alloy Disc QR 32h
Rear Hub Alloy Disc Cassette QR 32h
Spokes 14g Stainless MAC w/Alloy Nipples
Rims Weinmann U28, 29?, 32h, 28mm wide
Tires Schwalbe Racing Ralph Performance Folding, 29x2.25?
Handlebar Raleigh 200 Series Flat Top, 31.8, W:680mm
Grips Raleigh Closed-end Single Lock Ring
Stem Raleigh 200 Series, 3D Forged, 31.8, Lengths: 90/100/100/110mm
Seatpost Raleigh 2014 Alloy Dual Bolt 27.2x350mm, 20mm Offset
Seat Raleigh Mountain Saddle
Colors Sky Blue
Note Specifications Subject to Change
