2014 Lily
2014 Lily

2014 Lily

With hand brakes for secure stopping and 6-speeds for finding the right gear on climbs and descents, the Lily will inspire a life-long love of mountain biking. The Lily is an aluminum frame in a feminine and mature Dark Purple paint scheme. Exploration helps children develop awareness, curiosity, and dreams. What better avenue to support this exploration than through cycling? Raleigh’s Trail Bike collection offers boys and girls the opportunity to discover the unknown path, powered by youthful exuberance and boundless energy.

Highlights
All-new frame geometry
Aluminum frame and fork
Shimano components

Size Guide: Youth Girls Series

Comfort, safety, and fun!

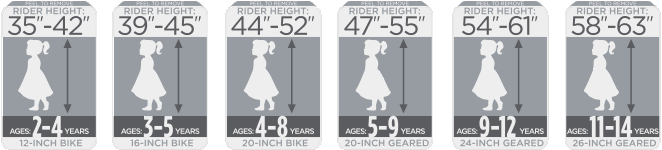

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible.The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age.The result is our all new sizing system for youth models.

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it's almost impossible to make sure it fits right. This is where our new sizing decals will help you out.The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Geometry

Size 24" Girls
Seat Tube Length ** 325.0mm
Standover Height 630.0mm
Top Tube Length * 510.0mm
Head Tube Length 100.0mm
Head Angle 70.0°
Seat Angle 71.0°
Chain Stay Length 410.0mm
Fork Offset 41.0mm
BB Drop 35.0mm
Stem Length 60.0mm
Handlebar Width 580.0mm
Crank Length 125.0mm
Seat Post Length

* Measured Horizontally** Measured from Center

Technology: Youth

Technology: Youth

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it’s almost impossible to make sure it fits right. This is where our new sizing decals will help you out. The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Raleigh Sizing System

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible. The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age. The result is our all new sizing system for youth models.

Safety

Safety

We care about the safety of our youth bikes. Every year the independent ACT-LAB performs testing on all our kids bikes to guarantee the bikes and their components are free of harmful chemicals and meet all the required safety standards. For more information visit www.act-lab.com

Frames

Frames

All our youth frames were updated to reflect the new Raleigh Sizing System. Important changes to the handlebars and geometry were made to optimize fit. Adjusting fork offsets and head angles minimizes the effect of wheel flop. This is key because the right amount of wheel flop makes our smallest bikes more stable and therefore safer. Our kids bikes are as easy to ride as they are fun. Time to get rid of the training wheels and start tearing it up!

Specs
Sizes 20" Girls
Frame 20" Low Standover 6061 Aluminum w/Replaceable Hanger
Fork Aluminum
Headset Threadless 1-1/8"
Cranks Steel 5" 40t w/Double Guard
Bottom Bracket 9pc Loose Ball
F. Derailleur N/A
R. Derailleur Shimano TZ-50
Shifter Shimano SL-RS35 Revo 6spd (Right)
Cogset Shimano TZ06 6spd (14-28t)
Chain KMC Z51
Brakes Alloy V-Brake
Brake Levers Alloy/Composite Adjustable
Front Hub Steel 28h Nutted
Rear Hub Steel 28h Nutted Freewheel
Spokes 14g
Rims Alloy 28h
Tires 20x1.95
Handlebar 560mm Steel, 30mm Rise
Grips Jr. Soft PVC
Stem 60mm x 15deg Alloy Ahead
Seatpost Steel Pillar 27.2x300mm
Seat Raleigh Jr. Mtn
Colors Dark Purple
Note Specifications Subject to Change
