The MXR is the perfect bike for the 4-8 year old rider learning to push the boundries of speed and flow. Equipped with two brakes, an alloy V-Brake with a handlebar mounted lever as well as a rear coaster brake, the MXR helps riders learn to stop smoothly and effectively when learning to push the boundaries of speed and flow Because we care about the safety of our youth bikes, all of them are tested by an independent test lab to guarantee the bikes and their components are free of harmful chemicals and meet all the required safety standards. This ensures our kids bikes are as safe to ride as they are fun.

Highlights
All-new frame geometry
New handlebar
Alloy V-brake

Size Guide: Youth Boys Series

Comfort, safety, and fun!

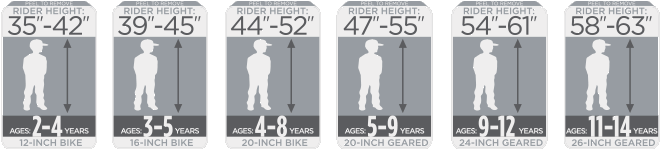

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible.The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age.The result is our all new sizing system for youth models.

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it's almost impossible to make sure it fits right. This is where our new sizing decals will help you out.The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Geometry

Size 24" Boys
Seat Tube Length ** 325.0mm
Standover Height 650.0mm
Top Tube Length * 510.0mm
Head Tube Length 100.0mm
Head Angle 70.0°
Seat Angle 71.0°
Chain Stay Length 410.0mm
Fork Offset 40.0mm
BB Drop 35.0mm
Stem Length 60.0mm
Handlebar Width 580.0mm
Crank Length 160.0mm
Seat Post Length

* Measured Horizontally** Measured from Center

Technology: Youth

Technology: Youth

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it’s almost impossible to make sure it fits right. This is where our new sizing decals will help you out. The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Raleigh Sizing System

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible. The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age. The result is our all new sizing system for youth models.

Safety

Safety

We care about the safety of our youth bikes. Every year the independent ACT-LAB performs testing on all our kids bikes to guarantee the bikes and their components are free of harmful chemicals and meet all the required safety standards. For more information visit www.act-lab.com

Frames

Frames

All our youth frames were updated to reflect the new Raleigh Sizing System. Important changes to the handlebars and geometry were made to optimize fit. Adjusting fork offsets and head angles minimizes the effect of wheel flop. This is key because the right amount of wheel flop makes our smallest bikes more stable and therefore safer. Our kids bikes are as easy to ride as they are fun. Time to get rid of the training wheels and start tearing it up!

Specs
Sizes 20" Boys
Frame 20" Boys Low Standover 6061 Aluminum
Fork 20" BMX Style Hi-Ten
Headset 1" Threaded
Cranks 5" 1pc Steel, 36t
Bottom Bracket 9pc Loose Ball
F. Derailleur N/A
R. Derailleur N/A
Shifter N/A
Cogset 18t Cog
Chain KMC Z410
Brakes Alloy V-Brake (Rear-Only w/Rear Coaster)
Brake Levers Alloy/Plastic Adjustable
Front Hub Steel 36h Nutted
Rear Hub Steel 36h Nutted Coaster
Spokes 14g
Rims Alloy 36h
Tires Comp III Style 20x2.125
Handlebar Steel BMX Style
Grips Soft PVC
Stem 4-Bolt Alloy/Steel Quill
Seatpost Steel Pillar 27.2 x 280mm
Seat Jr. BMX Padded
Colors Black |  Blue/Black |
Extras Logo Pad Set, Painted Chainguard
Note Specifications Subject to Change
