2014 Rep IV
2014 Rep IV

2014 Rep IV

The Rep IV is for the developing rider ready to explore basic trails or ride laps up, down, and around the local park. With similar geometry to a BMX bike, the REP IV looks and feels fast and capable of handling diverse terrain. 20” wheels and a rear handbrake will help boys hone the fundamentals of movement and balance. Because we care about the safety of our youth bikes, all of them are tested by an independent test lab to guarantee the bikes and their components are free of harmful chemicals and meet all the required safety standards. This ensures our kids bikes are as safe to ride as they are fun.

Highlights
Aluminum frame
Alloy V-brake
Alloy 36h rims

Size Guide: Youth Boys Series

Comfort, safety, and fun!

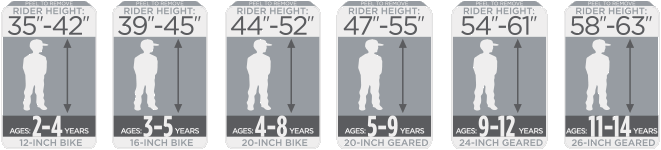

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible.The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age.The result is our all new sizing system for youth models.

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it's almost impossible to make sure it fits right. This is where our new sizing decals will help you out.The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Geometry

Size 24" Boys
Seat Tube Length ** 325.0mm
Standover Height 650.0mm
Top Tube Length * 510.0mm
Head Tube Length 100.0mm
Head Angle 70.0°
Seat Angle 71.0°
Chain Stay Length 410.0mm
Fork Offset 40.0mm
BB Drop 35.0mm
Stem Length 60.0mm
Handlebar Width 580.0mm
Crank Length 160.0mm
Seat Post Length

* Measured Horizontally** Measured from Center

Technology: Youth

Technology: Youth

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it’s almost impossible to make sure it fits right. This is where our new sizing decals will help you out. The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Raleigh Sizing System

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible. The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age. The result is our all new sizing system for youth models.

Safety

Safety

We care about the safety of our youth bikes. Every year the independent ACT-LAB performs testing on all our kids bikes to guarantee the bikes and their components are free of harmful chemicals and meet all the required safety standards. For more information visit www.act-lab.com

Frames

Frames

All our youth frames were updated to reflect the new Raleigh Sizing System. Important changes to the handlebars and geometry were made to optimize fit. Adjusting fork offsets and head angles minimizes the effect of wheel flop. This is key because the right amount of wheel flop makes our smallest bikes more stable and therefore safer. Our kids bikes are as easy to ride as they are fun. Time to get rid of the training wheels and start tearing it up!

Specs
Sizes 20" Boys
Frame 20? Freestyle BMX 6061 Aluminum
Fork 20" BMX Style Hi-Ten
Headset 1-1/8" Threadless
Cranks 165mm, 1pc Steel, 44t
Bottom Bracket 9pc Loose Ball
F. Derailleur N/A
R. Derailleur N/A
Shifter N/A
Cogset 16T Freewheel
Chain KMC Z410
Brakes Alloy V-Brake
Brake Levers Alloy Adjustable
Front Hub Steel 36h Nutted
Rear Hub Steel 36h Nutted
Spokes 14g
Rims Alloy 36h
Tires Comp III Style 20x2.125
Handlebar Steel BMX Style
Grips Jr. Soft PVC
Stem 4-Bolt Alloy
Seatpost Steel Pillar 27.2 x 280mm
Seat Jr. BMX Padded
Colors
Extras Cateye Reflector Set, Clear Coat, Owner's Manual
Note Specifications Subject to Change
