2014 Scout XC
2014 Scout XC

2014 Scout XC

Exploration helps children develop awareness, curiosity, and dreams. What better avenue to support this exploration than through cycling? Raleigh’s Trail Bike collection offers boys and girls the opportunity to discover the unknown path, powered by youthful exuberance and boundless energy. The Scout XC is the perfect first cross-country mountain bike for the young rider who has mastered cycling on pavement. With 21-speeds for a wide range of gear selections and a suspension fork to soften up rocks and dips on the trail, the Scout XC - in its bold Red frame color - will inspire adventure. Promax V-Brakes are responsive and will help young riders learn trail-ready finesse.

Highlights
Atomic Butted Aluminum Frame
21 speeds
Front Shock
Hand Brakes

Size Guide: Youth Boys Series

Comfort, safety, and fun!

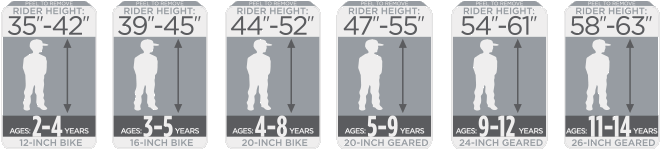

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible.The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age.The result is our all new sizing system for youth models.

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it's almost impossible to make sure it fits right. This is where our new sizing decals will help you out.The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Geometry

Size 24" Boys
Seat Tube Length ** 325.0mm
Standover Height 650.0mm
Top Tube Length * 510.0mm
Head Tube Length 100.0mm
Head Angle 70.0°
Seat Angle 71.0°
Chain Stay Length 410.0mm
Fork Offset 40.0mm
BB Drop 35.0mm
Stem Length 60.0mm
Handlebar Width 580.0mm
Crank Length 160.0mm
Seat Post Length

* Measured Horizontally** Measured from Center

Technology: Youth

Technology: Youth

We all know how challenging purchasing a kids bike can be, since they are often bought as a present. Without the child there to try the bike, it’s almost impossible to make sure it fits right. This is where our new sizing decals will help you out. The Raleigh Sizing System decals have both rider height and age on them to simplify the sales process as much as possible and to ensure every little tyke gets a perfect set of wheels to ride.

Raleigh Sizing System

Raleigh Sizing System

A fun and safe experience starts with proper bike fit. All of our 2014 youth models have new geometries to ensure they have the right fit and provide the safest handling possible. The geometries were optimized for specific rider heights, and we used pediatric growth charts to link these rider heights to their corresponding age. The result is our all new sizing system for youth models.

Safety

Safety

We care about the safety of our youth bikes. Every year the independent ACT-LAB performs testing on all our kids bikes to guarantee the bikes and their components are free of harmful chemicals and meet all the required safety standards. For more information visit www.act-lab.com

Frames

Frames

All our youth frames were updated to reflect the new Raleigh Sizing System. Important changes to the handlebars and geometry were made to optimize fit. Adjusting fork offsets and head angles minimizes the effect of wheel flop. This is key because the right amount of wheel flop makes our smallest bikes more stable and therefore safer. Our kids bikes are as easy to ride as they are fun. Time to get rid of the training wheels and start tearing it up!

Specs
Sizes 24" Boys
Frame 24" Low Standover 6061 Aluminum w/Replaceable Hanger
Fork SR Suntour XCT
Headset Threadless 1-1/8"
Cranks SR Suntour 160mm XCT Jr. 22/32/42t
Bottom Bracket Sealed Mech Loose Ball
F. Derailleur Shimano TX-50
R. Derailleur Shimano Altus
Shifter Shimano SL-RS41 Revo 7spd
Cogset Shimano TZ07 7spd (14-28t)
Chain KMC 7sp
Brakes Alloy V-Brake
Brake Levers Alloy/Composite Adjustable
Front Hub Alloy QR 36h
Rear Hub Alloy QR 36h Freewheel
Spokes 14g
Rims Alloy 36h
Tires 24x1.95
Handlebar 580mm Alloy, 30mm Rise
Grips Jr. Soft PVC
Stem 60mm x 15? Alloy Ahead
Seatpost Alloy Micro Adjust 27.2 x 300mm
Seat Raleigh Jr. Mtn
Colors Red
Note Specifications Subject to Change
