2014 Capri Carbon 2
2014 Capri Carbon 2

2014 Capri Carbon 2

Endurance riders demand fast bikes that are comfortable enough to pedal for hours; the Capri meets those demands. The geometry has been updated with a slackened seat angle that shifts the rider’s center of gravity back and takes some weight off the handlebars. The result is reduced strain on wrists, elbows, neck, and lower back. Less fatigue translates into improved stamina and comfort. The colors for the Capri’s were selected by our female feedback panel. Today, these bikes represent a new level of Women’s feedback, influence, and enthusiasm for the Raleigh brand.

Highlights
All-new full carbon frame and fork
Lighter wheels with wider rims
Shimano 105 drivetrain
Prologo Kappa Evo saddle
Vittoria Rubino tires

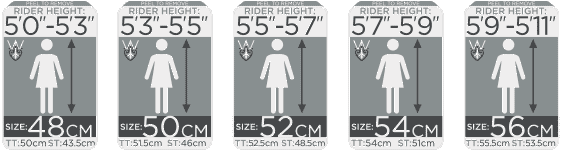

Size Guide: Capri Series

2014 marks the introduction of a new sizing system based on a database of bike fittings. Using our database of bike fittings helps better predict the frame dimensions for a bike size in a given height range. To use an example, our 56cm Revenio was designed using fit data from riders between 5’9” and 5’11”. The fit data is used to develop the geometry, but also determine correct handle bar width, bar reach, bar drop and crank lengths. The Raleigh Sizing System allows both customers and sales staff to determine the correct size quickly by checking the size decal that is on the bike.

Geometry

Size 48cm 50cm 52cm 54cm 56cm
Seat Tube Length ** 435.0mm 460.0mm 485.0mm 510.0mm 535.0mm
Standover Height 705.0mm 730.0mm 755.0mm 775.0mm 800.0mm
Top Tube Length * 500.0mm 515.0mm 525.0mm 540.0mm 555.0mm
Head Tube Length 105.0mm 130.0mm 150.0mm 165.0mm 185.0mm
Head Angle 70.0° 70.5° 71.0° 71.5° 72.3°
Seat Angle 74.5° 74.0° 73.5° 73.0° 73.0°
Chain Stay Length 410.0mm 410.0mm 410.0mm 410.0mm 410.0mm
Fork Offset 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm
BB Drop 72.5mm 72.5mm 72.5mm 70.0mm 70.0mm
Stem Length 80.0mm 80.0mm 90.0mm 90.0mm 100.0mm
Handlebar Width 380.0mm 380.0mm 380.0mm 400.0mm 400.0mm
Crank Length 165.0mm 170.0mm 170.0mm 172.5mm 172.5mm
Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm

* Measured Horizontally** Measured from Center

Technology: Capri Series

The Scale is your friend

All Capri bikes are lighter for 2014!

The Scale is your friend

SEATPOST

All parts of the bike are interconnected. Being able to fine-tune these parts synchronizes you with the bike. That's why we are introducing a new 20mm offset seat post for our road bikes. This adjustment (12mm more than last year) slightly shifts the rider position and complements the new geometry to produce big results: relief of arm, neck, and lower back stress.

SEATPOST

FORKS

All Capri models feature revamped forks for improved stability and handling. All of the Capri carbon 2.0's and above are spec'd with Raleigh custom all-carbon Monocoque tapered steerer forks. Other bikes in the fleet have either a new carbon-bonded 1.5" taper fork or a new chromoly fork (for the Capri 1.0). We have created these new forks to give these endurance bikes the quick handling they deserve. All forks feature a 50mm offset to complement our new frame geometry. We adjusted the bikes' head angles to work with this new fork, and the result is a responsive, precise ride without any toe-overlap with the front wheel.

FORKS

Wheels

The wheels bring a spark of life to a bike, and all 2014 Capri models are lighter, faster, and more stable with upgraded wheel sets. All wheels are stiffer and feature premium hubs and wider rims. All hubs are either Formula sealed-bearing hubs or new Formula hubs with Smooth Bearing Technology and CNC-machined dust caps to keep out the elements. The newly designed lightweight rims will either be the 23mm Weinmann Gmax, or the 21mm Aerodynamic Momentum. These upgrades allow riders to run lower tire pressure with less tire roll. This will enable faster and more confident cornering.

The Finite Element Advantage

The Finite Element Advantage

We love data, especially when the information gives us a competitive edge. We used the results from Finite Element Analysis (FEA), also known as "strength analysis," to optimize strength and stiffness as well as comfort. Consequently all 2014 aluminum and carbon Capri frames feature updated seat stays, top and down tubes, and increased stiffness in the right spots for highly efficient and extremely comfortable road bikes.

Specs
Sizes 48cm  50cm  52cm  54cm  56cm
Frame Direct Connect T700 Carbon, Women's Geometry, Tapered Headtube and CDS Internal Cable Routing
Fork Full Carbon Monocoque 1-1/8" to 1.5" Taper
Headset FSA Integrated Cartridge Bearings
Cranks FSA Energy Compact MegaExo 34/50t
Bottom Bracket FSA MegaExo
F. Derailleur Shimano 105
R. Derailleur Shimano 105
Shifter Shimano 105 10spd STI, Shimano SP41 Shift Housing
Cogset Shimano 10spd (12-30t)
Chain KMC X10
Brakes Tektro Quartz Dual Pivot
Brake Levers Shimano 105 STI
Front Hub Formula Alloy QR 24h
Rear Hub Formula Alloy QR 28h Cassette
Spokes 14g Stainless MAC
Rims Weinmann Momentum Double Wall 21mm Wide
Tires Vittoria Rubino Slick 700x25c
Handlebar Raleigh 200 Series Road, 31.8 Short Drop
Grips Gel Tape
Stem Raleigh 200 Series, 3D Forged, 31.8
Seatpost Raleigh Carbon Series 27.2x300mm
Seat Prologo Kappa EVO DEA T2.0
Colors Silver/Lime
Note Specifications Subject to Change
