2014 Detour 2.5
2014 Detour 2.5

2014 Detour 2.5

Designed for the rider who is seeking the simplicity of a functional and comfortable way to get around town without breaking the bank. The versatile Detour 2.5 is finished with multi-use tires and Shimano 7-spd MegaRange and a riser bar and stem for supreme leisure riding.

Highlights
Classic Steel Frame for a smooth dependable ride
Riser Bar and Stem
Multi-use Tires
Raleigh Comfort Saddle and Grips
Shimano 7spd MegaRange

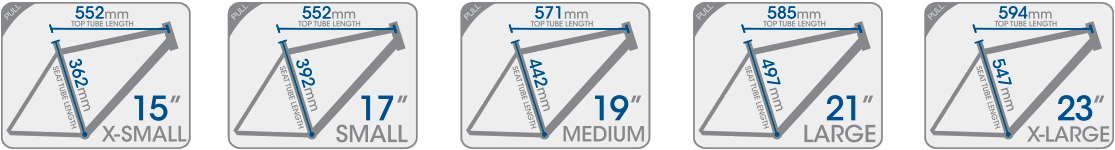

Size Guide: Detour

Geometry

Size 15" XS 17" SM 19" MD 21" LG 23" XL
Seat Tube Length ** 362.0mm 392.0mm 442.0mm 497.0mm 547.0mm
Standover Height 680.0mm 685.0mm 720.0mm 770.0mm 795.0mm
Top Tube Length * 552.0mm 552.0mm 571.0mm 585.0mm 594.0mm
Head Tube Length 120.0mm 120.0mm 140.0mm 160.0mm 160.0mm
Head Angle 70.0° 70.0° 70.0° 70.0° 70.0°
Seat Angle 74.0° 74.0° 73.0° 73.0° 73.0°
Chain Stay Length 450.0mm 450.0mm 450.0mm 450.0mm 450.0mm
Fork Offset 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm
BB Drop 65.0mm 65.0mm 65.0mm 65.0mm 65.0mm
Stem Length 80.0mm 80.0mm 80.0mm 100.0mm 100.0mm
Handlebar Width 630.0mm 630.0mm 630.0mm 630.0mm 630.0mm
Crank Length 170.0mm 170.0mm 170.0mm 170.0mm 170.0mm
Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 15" XS  17" SM  19" MD  21" LG  23" XL
Frame OS Steel Hybrid
Fork OS Steel Threaded
Headset Threaded 1-1/8"
Cranks Single Speed 40t w/Double Guard
Bottom Bracket Sealed Cartridge Square Taper
F. Derailleur N/A
R. Derailleur Shimano Tourney
Shifter Shimano Revo Twist 7spd
Cogset Shimano 7spd MegaRange (14-34t)
Chain KMC 7spd
Brakes Promax Alloy V-Brake w/Alloy Adjuster
Brake Levers Promax Alloy Linear Pull
Front Hub Formula Alloy QR 36h
Rear Hub Formula Alloy QR 36h
Spokes 14g Stainless Steel
Rims Weinmann ZAC-20
Tires Kenda K-192 700x35c
Handlebar Steel 50mm Rise x 630mm
Grips Raleigh Comfort
Stem Alloy Quill
Seatpost Alloy Micro Adjust 27.2x300mm
Seat Raleigh Comfort
Colors Steel Green
Note Specifications Subject to Change
