2014 Detour 4.5
2014 Detour 4.5

2014 Detour 4.5

With an all new frame and fork combined with 8-speed Shimano EZ Fire, the hybrid Detour brings functionality, convince and value to your everyday rider. New for 2014, this bike is finished with a comfy Selle Royal LookIn saddle.

Highlights
New Alloy frame and fork with hybrid geometry also has rack and fender mounts
Selle Royal LookIn saddle
Shimano drivetrain
Alloy double wall rims
Raleigh comfort grips and saddle

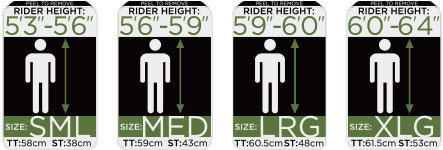

Size Guide: Detour

Geometry

Size 15" XS 17" SM 19" MD 21" LG 23" XL 15" XS 15" XS 17" SM 17" SM 19" MD 19" MD 21" LG 21" LG 15" SM 17" MD 19" LG 21" XL
Seat Tube Length ** mm mm mm mm mm mm mm mm mm mm mm mm mm 380.0mm 430.0mm 480.0mm 530.0mm
Standover Height mm mm mm mm mm mm mm mm mm mm mm mm mm 735.0mm 685.0mm 720.0mm 770.0mm
Top Tube Length * mm mm mm mm mm mm mm mm mm mm mm mm mm 580.0mm 590.0mm 605.0mm 615.0mm
Head Tube Length mm mm mm mm mm mm mm mm mm mm mm mm mm 140.0mm 160.0mm 185.0mm 210.0mm
Head Angle ° ° ° ° ° ° ° ° ° ° ° ° ° 70.0° 70.0° 70.0° 70.0°
Seat Angle ° ° ° ° ° ° ° ° ° ° ° ° ° 72.0° 72.0° 72.0° 72.0°
Chain Stay Length mm mm mm mm mm mm mm mm mm mm mm mm mm 455.0mm 455.0mm 455.0mm 455.0mm
Fork Offset mm mm mm mm mm mm mm mm mm mm mm mm mm 50.0mm 50.0mm 50.0mm 50.0mm
BB Drop mm mm mm mm mm mm mm mm mm mm mm mm mm 70.0mm 70.0mm 70.0mm 70.0mm
Stem Length mm mm mm mm mm mm mm mm mm mm mm mm mm 75.0mm 90.0mm 90.0mm 105.0mm
Handlebar Width mm mm mm mm mm mm mm mm mm mm mm mm mm 640.0mm 640.0mm 640.0mm 640.0mm
Crank Length mm mm mm mm mm mm mm mm mm mm mm mm mm 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length mm mm mm mm mm mm mm mm mm mm mm mm mm 350.0mm 350.0mm 400.0mm 400.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 15" XS  17" SM  19" MD  21" LG  23" XL  15" XS  15" XS  17" SM  17" SM  19" MD  19" MD  21" LG  21" LG  15" SM  17" MD  19" LG  21" XL
Frame AL-6061 Aluminum, w/City Sport Geometry
Fork Alloy Hybrid w/Fender Mounts
Headset Threadless 1-1/8"
Cranks Shimano FC-M171 28/38/48t w/Chainguard
Bottom Bracket Sealed Cartridge Square Taper
F. Derailleur Shimano FD-M191
R. Derailleur Shimano Altus
Shifter Shimano EF40 EZ Fire 8spd, Shimano SP41 Shift Housing
Cogset Shimano 8spd (11-32t)
Chain KMC 8spd
Brakes Promax Alloy V-Brake w/Alloy Adjuster
Brake Levers Shimano EF-40
Front Hub Formula Alloy QR 36h
Rear Hub Formula Alloy QR 36h Cassette
Spokes 14g Stainless Steel
Rims Weinmann XC260 Double Wall
Tires Kenda K-192 w/PRC Antipuncture and K-Shield 700x35c
Handlebar Alloy Flat 27? Sweep Bar, 620/640mm
Grips Raleigh Comfort
Stem Raleigh Alloy Forged, 15?
Seatpost Alloy Micro Adjust 27.2x400mm
Seat Selle Royal Lookin
Colors Dark Blue
Note Specifications Subject to Change
