2014 Detour 4.5 Womens
2014 Detour 4.5 Womens

2014 Detour 4.5 Womens

With an all new frame and fork combined with 8-speed Shimano EZ Fire, the hybrid Detour brings functionality, convince and value to your everyday rider. New for 2014, this bike is finished with a comfy Selle Royal LookIn saddle.

Highlights
New Alloy frame and fork with hybrid geometry also has rack and fender mounts
Selle Royal LookIn saddle
Shimano drivetrain
Alloy double wall rims
Raleigh comfort grips and saddle

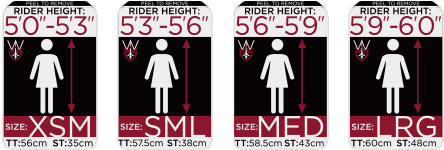

Size Guide: Detour Womens

Geometry

Size 13" WXS 15" WSM 17" WMD
Seat Tube Length ** 350.0mm 380.0mm 430.0mm
Standover Height 595.0mm 595.0mm 595.0mm
Top Tube Length * 560.0mm 575.0mm 585.0mm
Head Tube Length 140.0mm 150.0mm 170.0mm
Head Angle 70.0° 70.0° 70.0°
Seat Angle 72.0° 72.0° 72.0°
Chain Stay Length 455.0mm 455.0mm 455.0mm
Fork Offset 50.0mm 50.0mm 50.0mm
BB Drop 70.0mm 70.0mm 70.0mm
Stem Length 75.0mm 75.0mm 90.0mm
Handlebar Width 620.0mm 620.0mm 620.0mm
Crank Length 170.0mm 170.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 13" WXS  15" WSM  17" WMD
Frame AL-6061 Aluminum, w/City Sport Geometry
Fork Alloy Hybrid w/Fender Mounts
Headset Threadless 1-1/8"
Cranks Shimano FC-M171 28/38/48t w/Chainguard
Bottom Bracket Sealed Cartridge Square Taper
F. Derailleur Shimano FD-M191
R. Derailleur Shimano Altus
Shifter Shimano EF40 EZ Fire 8spd, Shimano SP41 Shift Housing
Cogset Shimano 8spd (11-32t)
Chain KMC 8spd
Brakes Promax Alloy V-Brake w/Alloy Adjuster
Brake Levers Shimano EF-40
Front Hub Formula Alloy QR 36h
Rear Hub Formula Alloy QR 36h Cassette
Spokes 14g Stainless Steel
Rims Weinmann XC260 Double Wall
Tires Kenda K-192 w/PRC Antipuncture and K-Shield 700x35c
Handlebar Alloy Flat 27? Sweep Bar, 620/640mm
Grips Raleigh Comfort
Stem Raleigh Alloy Forged, 15?
Seatpost Alloy Micro Adjust 27.2x400mm
Seat Selle Royal Lookin
Colors Steel Blue
Note Specifications Subject to Change
