2014 Detour 5.5
2014 Detour 5.5

2014 Detour 5.5

With an all new frame and fork combined with 8-speed Shimano Rapidfire Plus, the hybrid Detour brings functionality, convince and value to your everyday rider. Equipped with custom fenders and racks, this bike makes it easy to leave the car at home for trips to the market, or on your commute to work. For 2014, this bike is finished with disc brakes and a comfy Selle Royal Lookin saddle.

Highlights
AL-6061 Aluminum frame with city sport geometry
Custom racks and fenders
Mechanical disc brakes
Selle Royal LookIn saddle
Kenda anti-puncture tires

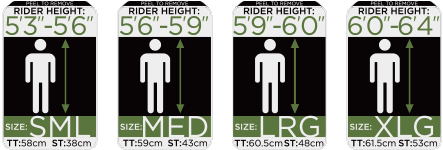

Size Guide: Detour

Geometry

Size 15" SM 17" MD 19" LG 21" XL
Seat Tube Length ** 380.0mm 430.0mm 480.0mm 530.0mm
Standover Height 735.0mm 685.0mm 720.0mm 770.0mm
Top Tube Length * 580.0mm 590.0mm 605.0mm 615.0mm
Head Tube Length 140.0mm 160.0mm 185.0mm 210.0mm
Head Angle 70.0° 70.0° 70.0° 70.0°
Seat Angle 72.0° 72.0° 72.0° 72.0°
Chain Stay Length 455.0mm 455.0mm 455.0mm 455.0mm
Fork Offset 50.0mm 50.0mm 50.0mm 50.0mm
BB Drop 70.0mm 70.0mm 70.0mm 70.0mm
Stem Length 75.0mm 90.0mm 90.0mm 105.0mm
Handlebar Width 640.0mm 640.0mm 640.0mm 640.0mm
Crank Length 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 400.0mm 400.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 15" SM  17" MD  19" LG  21" XL
Frame AL-6061 Aluminum, w/City Sport Geometry
Fork Alloy Hybrid w/Fender Mounts
Headset Threadless 1-1/8"
Cranks Shimano FC-M311 28/38/48t w/Chainguard
Bottom Bracket Sealed Cartridge Square Taper
F. Derailleur Shimano Altus
R. Derailleur Shimano Acera
Shifter Shimano ST-M310 Rapidfire Plus 8spd, Shimano SP41 Shift Housing
Cogset Shimano 8spd (11-32t)
Chain KMC 8spd
Brakes Tektro Novela Mechanical Disc, 160mm Rotors
Brake Levers Shimano ST-M310
Front Hub Joytech Alloy Disc QR 32h
Rear Hub Joytech Alloy Disc QR 32h Cassette
Spokes 14g Stainless Steel
Rims Weinmann XC260 Double Wall
Tires Kenda K-192 w/PRC Antipuncture and K-Shield 700x35c
Handlebar Alloy Flat 27? Sweep Bar, 620/640mm
Grips Raleigh Comfort
Stem Raleigh Alloy Forged, 15?
Seatpost Raleigh 100 Series 27.2x400mm
Seat Selle Royal Lookin
Colors
Extras Rear Rack, Front and Rear Fenders and Kickstand
Note Specifications Subject to Change
