Endurance riders demand fast bikes that are comfortable enough to pedal for hours, the Revenio meets those demands. The geometry has been updated with a slackened seat angle that shifts the rider’s center of gravity back and takes some weight off the handlebars. The result is reduced strain on wrists, elbows, neck, and lower back. Less fatigue translates into improved stamina and comfort.
Size Guide: Revenio Series

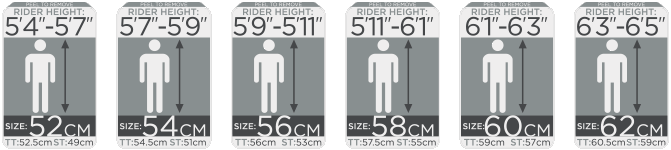

Raleigh Sizing System
2014 marks the introduction of a new sizing system based on a database of bike fittings. Using our database of bike fittings helps better predict the frame dimensions for a bike size in a given height range. To use an example, our 56cm Revenio was designed using fit data from riders between 5’9” and 5’11”. The fit data is used to develop the geometry, but also determine correct handle bar width, bar reach, bar drop and crank lengths. The Raleigh Sizing System allows both customers and sales staff to determine the correct size quickly by checking the size decal that is on the bike.
Bike performance is directly linked to shape and fit of a bike. Endurance riders demand fast bikes that are comfortable enough to pedal for hours, the Revenio and Capri meet those demands. The 2014 Revenio and Capri have received updated geometries in both the alloy and carbon versions. A key highlight includes the slackened seat angle, which shifts the rider’s center of gravity back and takes some weight off the handlebars. The result is reduced strain on wrists, elbows, neck and lower back. Less fatigue translates into improved stamina and comfort.
|Seat Tube Length **||490.0mm||510.0mm||530.0mm||550.0mm||570.0mm||590.0mm|
|Top Tube Length *||525.0mm||545.0mm||560.0mm||575.0mm||590.0mm||605.0mm|
|Head Tube Length||145.0mm||165.0mm||180.0mm||200.0mm||215.0mm||230.0mm|
|Chain Stay Length||410.0mm||410.0mm||410.0mm||410.0mm||410.0mm||410.0mm|
|Seat Post Length||300.0mm||300.0mm||300.0mm||300.0mm||300.0mm||300.0mm|
* Measured Horizontally** Measured from Center
Technology: Revenio Series
The Scale is your friend
All Revenio bikes are lighter for 2014!
All parts of the bike are interconnected. Being able to fine-tune these parts synchronizes you with the bike. That's why we are introducing a new 20mm offset seat post for our road bikes. This adjustment (12mm more than last year) slightly shifts the rider position and complements the new geometry to produce big results: relief of arm, neck, and lower back stress.
All Revenio models feature revamped forks for improved stability and handling. All of the Revenio are spec'd with Raleigh custom all-carbon Monocoque tapered steerer forks. Other bikes in the fleet have either a new carbon-bonded 1.5" taper fork or a new chromoly fork (for the Revenio). We have created these new forks to give these endurance bikes the quick handling they deserve. All forks feature a 50mm offset to complement our new frame geometry. We adjusted the bikes' head angles to work with this new fork, and the result is a responsive, precise ride without any toe-overlap with the front wheel.
The wheels bring a spark of life to a bike, and all 2014 Revenio models are lighter, faster, and more stable with upgraded wheel sets. All wheels are stiffer and feature premium hubs and wider rims. All hubs are either Formula sealed-bearing hubs or new Formula hubs with Smooth Bearing Technology and CNC-machined dust caps to keep out the elements. The newly designed lightweight rims will either be the 23mm Weinmann Gmax, or the 21mm Aerodynamic Momentum. These upgrades allow riders to run lower tire pressure with less tire roll. This will enable faster and more confident cornering.
The Finite Element Advantage
We love data, especially when the information gives us a competitive edge. We used the results from Finite Element Analysis (FEA), also known as "strength analysis," to optimize strength and stiffness as well as comfort. Consequently all 2014 aluminum and carbon Revenio frames feature updated seat stays, top and down tubes, and increased stiffness in the right spots for highly efficient and extremely comfortable road bikes.
|Sizes||52cm 54cm 56cm 58cm 60cm 62cm|
|Frame||AL-6061 Hydroformed, Butted Tubing, RE2P Geometry|
|Fork||Custom Carbon Composite w/Tapered 1-1/8" to 1.5" Aluminum Steer Tube|
|Headset||FSA Integrated Cartridge Bearings|
|Cranks||FSA Vero Compact 34/50t|
|Bottom Bracket||FSA Sealed Cartridge Square|
|F. Derailleur||Shimano Sora|
|R. Derailleur||Shimano Sora|
|Shifter||Shimano Sora 9spd STI, Shimano SP41 Shift Housing|
|Cogset||Shimano 9spd (11-32t)|
|Brakes||Tektro R540 Dual Pivot|
|Brake Levers||Shimano Sora STI|
|Front Hub||Formula Alloy QR 28h|
|Rear Hub||Formula Alloy QR 28h Cassette|
|Spokes||14g Stainless Steel|
|Rims||Weinmann GMAX Double Wall 23mm Wide|
|Tires||Vittoria Zaffiro Slick 700x25c|
|Handlebar||Raleigh 100 Series Road, 31.8 Short Drop|
|Stem||Raleigh 200 Series, 3D Forged, 31.8|
|Seatpost||Raleigh 100 Series 27.2x300mm|
|Seat||Prologo Kappa Satin Rail|
|Note||Specifications Subject to Change|
