The layup for our Militis frames is a proprietary blend of high modulus fibers. More important than just using high grades of carbon, we use the right carbon in the right place. Pair this construction technique with a tapered headtube, oversized downtube and chainstays, and the result is an 880gram Militis frame that has all the stiffness where it counts. With the rigidity of the frame surrounding the drivetrain, these bikes launch forward with every pedal stroke. Borrowing from the race proven RXC Pro the CDS plate inserts are added to the frames this year, allowing the Militis to be compatible with both electrical and mechanical cable systems.

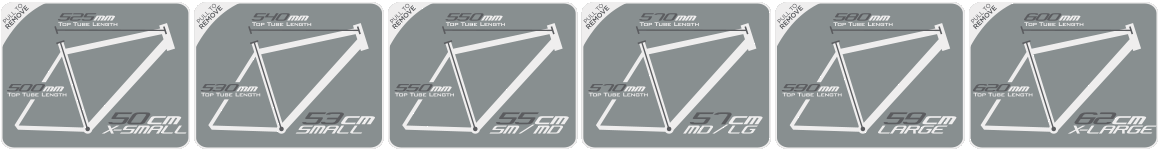

Size Guide: Militis
|Seat Tube Length **||500.0mm||530.0mm||550.0mm||570.0mm||590.0mm||620.0mm|
|Top Tube Length *||525.0mm||540.0mm||550.0mm||570.0mm||580.0mm||600.0mm|
|Head Tube Length||115.0mm||135.0mm||150.0mm||170.0mm||185.0mm||200.0mm|
|Chain Stay Length||408.0mm||408.0mm||408.0mm||408.0mm||408.0mm||408.0mm|
|Seat Post Length||350.0mm||350.0mm||350.0mm||350.0mm||350.0mm||350.0mm|
* Measured Horizontally** Measured from Center
Technology: 2014 Militis Series
Fast, Lightweight, Efficient
The layup for our Militis frames is a proprietary blend of high modulus fibers. More important than just using high grades of carbon, we use the right carbon in the right place. Pair this construction technique with a tapered headtube, oversized downtube and chainstays, and the result is an 880gram Militis that has all the stiffness where it counts. With the rigidity of the frame surrounding the drivetrain, these bikes launch forward with every pedal stroke. Making its way from the RXC Pro, the CDS plate inserts are added to the frames this year, allowing the Militis to be compatible with both electrical and mechanical cable systems.
Also making an introduction this year are two lightweight aluminum models, The Militis Elite and Militis Comp. The AL-6061 frames have a 1.5” tapered head tube and double butted tubes throughout, while small diameter seat stays are vertically compliant without sacrificing stiffness. These Militis Elite and Comp feature our most efficient, highly compliant, and lightest alloy race frames.
The Militis 4, 3, 2, Comp, and Elite have our 380 gram full carbon monocoque fork which allows the front end to be more stable at high speeds. More control means your favorite crit turns will be even more exhilarating.
The wheels bring a spark of life to a bike, and all 2014 Militis feature upgraded wheels from last year.The Militis 4, 3 and Comp feature race proven Mavic wheels. All other Militis models feature our new wheels with premium hubs and wider rims.The hubs are either Formula sealed-bearing hubs or the new Formula hubs with Smooth BearingTechnology with CNC-machined sealed dust caps for keeping out the elements. Rims are the 23mm wide Weinmann Gmax, or the 21mm wide aerodynamic Momentum.The 2014 Militis bikes are faster and lighter than ever with these new wheels, so set your sights on the podium!
Ridden on by World Champions and grand tour winners, Prologo is a trusted name in the cycling race world. The lightweight and comfortable Prologo Zero saddles are featured across the entire Militis line of bikes this year. Packed with technology and striking looks, these saddles add the perfect complement to our fastest line of bikes.
|Sizes||50cm 53cm 55cm 57cm 59cm 62cm|
|Frame||Direct Connect T800 Carbon Evolution w/PF30, Tapered Headtube and CDS Internal Cable Routing|
|Fork||One Piece Forged AL Steer and Crown 1-1/8" to 1.5" Taper, Carbon Leg and Dropouts|
|Headset||FSA Integrated Cartridge Bearings|
|Cranks||FSA Gossamer Pro Compact BB30 36/52t|
|Bottom Bracket||FSA PF30|
|F. Derailleur||Shimano 105|
|R. Derailleur||Shimano 105|
|Shifter||Shimano 105 10spd STI, Shimano SP41 Shift Housing|
|Cogset||Shimano 105 10spd (12-27t)|
|Brakes||Tektro Quartz Dual Pivot|
|Brake Levers||Shimano 105 STI|
|Front Hub||Formula Alloy QR 24h|
|Rear Hub||Formula Alloy QR 28h Cassette|
|Spokes||14g Stainless MAC|
|Rims||Weinmann Momentum Double Wall 21mm Wide|
|Tires||Vittoria Rubino Pro Slick Folding 700x23c|
|Handlebar||Raleigh 200 Series Road, 31.8 Short Drop|
|Stem||Raleigh 200 Series, 3D Forged, 31.8|
|Seatpost||Raleigh Carbon Series 31.6x350mm|
|Seat||Prologo Zero II T2.0|
|Note||Specifications Subject to Change|
