2014 Militis Comp
2014 Militis Comp

2014 Militis Comp

Whether lining up for a 100-mile road race or a local crit, at just over 18lbs the Militis Comp is the perfect match of no-compromise components and race engineering. Outfitted with a SRAM Rival and FSA Energy drive train, the Militis Comp is ready to hit the pavement at high speed with no empathy for the competition. We tapped into our long history of developing high performance road bikes to create the new Militis alloy road frames: Militis carbon race-proven geometry executed in aluminum. With its tapered head tube, oversized down tube, BB and chain stays, the new Militis alloy frame minimizes flex and maximizes power transfer while the small-diameter seat stays are vertically compliant without sacrificing stiffness. The Militis Alloy series are our most efficient, highly compliant, and lightest alloy race frames.

Highlights
Ultra-Light Alloy Frame; Race-ready out of the box
Mavic Aksium Wheels
FSA Energy Mid Compact BB30 36/52t crankset
Sram Rival 10sp drivetrain
Prologo Zero II T2.0 saddle

<

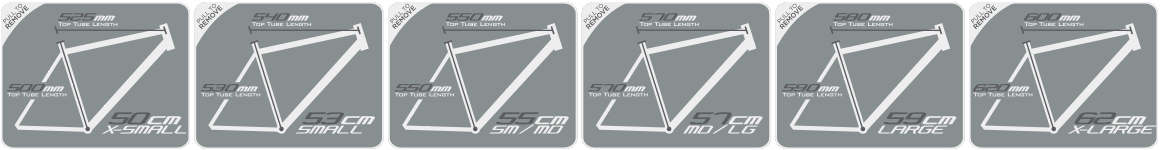

Size Guide: Militis

Geometry

table class="table-data" id="geometry_details"> Size 50cm 53cm 55cm 57cm 59cm 62cm Seat Tube Length ** 500.0mm 530.0mm 550.0mm 570.0mm 590.0mm 620.0mm Standover Height 745.0mm 765.0mm 785.0mm 805.0mm 820.0mm 840.0mm Top Tube Length * 525.0mm 540.0mm 550.0mm 570.0mm 580.0mm 600.0mm Head Tube Length 115.0mm 135.0mm 150.0mm 170.0mm 185.0mm 200.0mm Head Angle 73.0° 73.0° 73.5° 73.5° 73.8° 74.0° Seat Angle 74.0° 73.3° 73.0° 73.0° 73.0° 72.5° Chain Stay Length 405.0mm 405.0mm 405.0mm 405.0mm 405.0mm 405.0mm Fork Offset 45.0mm 45.0mm 45.0mm 45.0mm 45.0mm 45.0mm BB Drop 68.0mm 68.0mm 68.0mm 68.0mm 68.0mm 68.0mm Stem Length 90.0mm 90.0mm 100.0mm 100.0mm 110.0mm 120.0mm Handlebar Width 400.0mm 400.0mm 420.0mm 420.0mm 440.0mm 440.0mm Crank Length 170.0mm 170.0mm 172.5mm 172.5mm 175.0mm 175.0mm Seat Post Length 350.0mm 350.0mm 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Technology: 2014 Militis Series

Fast, Lightweight, Efficient

Carbon Frames

Carbon Frames

The layup for our Militis frames is a proprietary blend of high modulus fibers. More important than just using high grades of carbon, we use the right carbon in the right place. Pair this construction technique with a tapered headtube, oversized downtube and chainstays, and the result is an 880gram Militis that has all the stiffness where it counts. With the rigidity of the frame surrounding the drivetrain, these bikes launch forward with every pedal stroke. Making its way from the RXC Pro, the CDS plate inserts are added to the frames this year, allowing the Militis to be compatible with both electrical and mechanical cable systems.

Alloy Frames

Alloy Frames

Also making an introduction this year are two lightweight aluminum models, The Militis Elite and Militis Comp. The AL-6061 frames have a 1.5” tapered head tube and double butted tubes throughout, while small diameter seat stays are vertically compliant without sacrificing stiffness. These Militis Elite and Comp feature our most efficient, highly compliant, and lightest alloy race frames.

FORKS

The Militis 4, 3, 2, Comp, and Elite have our 380 gram full carbon monocoque fork which allows the front end to be more stable at high speeds. More control means your favorite crit turns will be even more exhilarating.

Wheels

The wheels bring a spark of life to a bike, and all 2014 Militis feature upgraded wheels from last year.The Militis 4, 3 and Comp feature race proven Mavic wheels. All other Militis models feature our new wheels with premium hubs and wider rims.The hubs are either Formula sealed-bearing hubs or the new Formula hubs with Smooth BearingTechnology with CNC-machined sealed dust caps for keeping out the elements. Rims are the 23mm wide Weinmann Gmax, or the 21mm wide aerodynamic Momentum.The 2014 Militis bikes are faster and lighter than ever with these new wheels, so set your sights on the podium!

Prologo Saddles

Ridden on by World Champions and grand tour winners, Prologo is a trusted name in the cycling race world. The lightweight and comfortable Prologo Zero saddles are featured across the entire Militis line of bikes this year. Packed with technology and striking looks, these saddles add the perfect complement to our fastest line of bikes.

Prologo Saddles

Specs
Sizes 50cm  53cm  55cm  57cm  59cm  62cm
Frame Butted Kinesium Aluminum w/PF30 and Tapered Headtube
Fork Full Carbon Monocoque 1-1/8" to 1.5" Taper
Headset FSA Integrated Cartridge Bearings
Cranks FSA Energy Compact BB30 36/52t
Bottom Bracket FSA PF30
F. Derailleur SRAM Rival
R. Derailleur SRAM Rival
Shifter SRAM Rival 10spd
Cogset SRAM PG-1050 10spd (11-28t)
Chain SRAM PC-1051 10spd
Brakes FSA Energy Dual Pivot
Brake Levers SRAM Rival
Front Hub Included With Wheelset
Rear Hub Included With Wheelset
Spokes Included With Wheelset
Rims Mavic Aksium Race WTS
Tires Mavic Aksion 700x23c
Handlebar Raleigh 200 Series Road, 31.8 Short Drop
Grips Gel Tape
Stem Raleigh 200 Series, 3D Forged, 31.8
Seatpost Raleigh 200 Series 31.6x350mm
Seat Prologo Zero II T2.0
Colors Red/Black
Note Specifications Subject to Change
