2014 Misceo Trail 2.0
2014 Misceo Trail 2.0

2014 Misceo Trail 2.0

The Suntour NCX suspension fork is there to absorb all the irregularities of potholes, bumpy gravel, or curb hopping. Have a wide-open ocean of smooth pavement in front of you? With an easy flip of the switch, the fork stays rigid for faster city riding. The Misceo Trail 2.0 is fully Shimano-equipped, with their 9sp Alivio drivetrain giving you plenty of gear options to get up and go, and their strong mechanical disc brakes will ensure you have maximum stopping power. New for this year is the addition of the Schwalbe Tyrago tires, with the perfect mix of smooth rolling tread and traction grabbing knobs, and Kevlar reinforcement to make you don’t have to worry about flats!

Highlights
AL-6061 frame with custom formed butted Aluminum tubes
SR Suntour NCX suspension fork with Hydraulic Speed Lock
Shimano disc brakes
Schwalbe Tyrago tires with flat protection
Dual bolt seatpost

Size Guide: 2014 Misceo Series

Frames

We revamped the 2014 Misceo line for improved handling and comfort. We managed to achieve this by simply lowering the bottom bracket. The result was an overall lower center of gravity which increases the standover clearance, improves stability and produces a more confident ride. For additional rider comfort, this year we’ve introduced the Raleigh Sizing System that is based on an exhaustive database of bike fittings. This system is used during the development of new geometries allowing both customers and sales staff to determine the best size for the rider quickly by referencing a size decal on the bike.

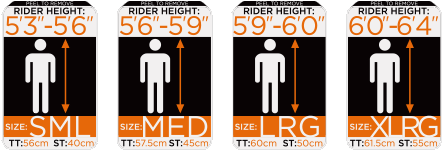

Raleigh Sizing System

Geometry

Size SM MD LG XL
Seat Tube Length ** 400.0mm 450.0mm 500.0mm 550.0mm
Standover Height 750.0mm 780.0mm 810.0mm 840.0mm
Top Tube Length * 560.0mm 575.0mm 600.0mm 615.0mm
Head Tube Length 100.0mm 110.0mm 125.0mm 140.0mm
Head Angle 70.5° 70.5° 70.5° 70.5°
Seat Angle 73.0° 73.0° 73.0° 73.0°
Chain Stay Length 455.0mm 455.0mm 455.0mm 455.0mm
Fork Offset 42.0mm 42.0mm 42.0mm 42.0mm
BB Drop 70.0mm 70.0mm 70.0mm 70.0mm
Stem Length 80.0mm 90.0mm 90.0mm 100.0mm
Handlebar Width 640.0mm 640.0mm 640.0mm 640.0mm
Crank Length 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 400.0mm 400.0mm

* Measured Horizontally** Measured from Center

2014 Misceo Series

RELIABILITY, DURABILITY, AND SIMPLICITY

Lookin Saddles

Lookin Saddles

The majority of the Misceo models feature the new Lookin saddles from Selle Royal. These saddles feature Royalgel, a proprietary ingredient that has been shown to reduce contact pressure by up to 40% providing the maximum level of comfort through better weight distribution.These saddles are also made with Strengtex, an extremely durable material that is able to repel scratches, tears and water.The Lookin is as visually striking as it is technical, boasting a transparent "window" to its Royalgel interior.

Frames

We revamped the 2014 Misceo lines for improved handling and comfort. We managed to achieve this by simply lowering the bottom bracket. The result was an overall lower center of gravity which increases the standover clearance, improves stability and produces a more confident ride. For additional rider comfort, this year we’ve introduced the Raleigh Sizing System that is based on an exhaustive database of bike fittings. This system is used during the development of new geometries allowing both customers and sales staff to determine the best size for the rider quickly by referencing a size decal on the bike.

Reliability

Our home base in Seattle is famous for its wet weather, giving us the perfect testing ground for developing durable bikes. To endure the rigors of daily urban assaults, a bike must thrive in the most uncompromising conditions: poor roads, outdoor parking and inclement weather. They need reliable tires and durable components that require minimal maintenance, and we most certainly have that covered: the majority of the Misceo and Mesika models come with low maintenance disc brakes, and the Misceo 4.0 and Mesika 3.0 swap out a traditional chain for a smooth Gates carbon belt. Added bonus for the women, the Mesika 3.0 also features low maintenance Shimano roller brakes, it is sure to turn some heads.

Specs
Sizes SM  MD  LG  XL
Frame AL-6061 Custom Formed Butted Aluminum Tubes
Fork SR Suntour NCX 63mm w/Hydraulic Speed Lock
Headset Ahead 1-1/8"
Cranks Shimano Alivio 26/36/48t w/Chainguard
Bottom Bracket Shimano Octalink ES25
F. Derailleur Shimano Alivio
R. Derailleur Shimano Deore
Shifter Shimano Alivio Rapidfire Plus 9spd
Cogset Shimano 9spd (11-32t)
Chain KMC Z99
Brakes Shimano 416 Mechanical Disc, 160mm Rotors
Brake Levers Shimano Alivio
Front Hub Joytech Alloy Disc QR 32h
Rear Hub Joytech Alloy Disc QR 32h Cassette
Spokes 14g Stainless Steel
Rims Weinmann XM25 Disc Double Wall
Tires Schwalbe Tyrago w/Kevlar Guard 700x40c
Handlebar Raleigh Alloy Riser 640/15mm, 31.8
Grips Raleigh MTB Grip
Stem Raleigh 200 Series, 3D Forged, 31.8
Seatpost Raleigh 200 Series 27.2x400mm
Seat Raleigh 200 Series w/Satin Rails
Colors
Note Specifications Subject to Change
