2014 Revenio Carbon 3
2014 Revenio Carbon 3

2014 Revenio Carbon 3

The Revenio 3.0 is a creation of beauty and beast. Equal parts both, this carbon steed is easy on the eyes but a hard competitor on the road. The Revenio 3.0 is a comfy carbon pleasure cruise at an affordable price. Featuring light weight components that excel while grunting up climbs and our double wall Momentum rims for added durability. This not-so-modest carbon workhouse will love you forever. The Revenio 3.0 also features Shimano Ultegra, 11-speed components for high-performance pedaling. When it comes to value, performance, and comfort the Revenio 3.0 has you covered.

Highlights
All-new full carbon frame and fork
Shimano Ultegra 11spd
Lighter wheels with wider rims and sealed bearing formula hubs
FSA Team Issue BB386 EVO 34/50t compact cranks
Prologo Nago EVO X-10 T2.0 Saddle

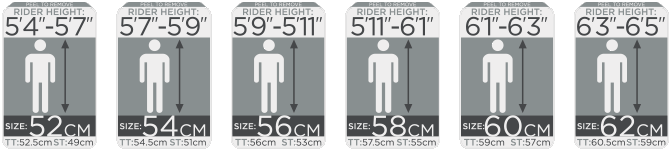

Size Guide: Revenio Series

Raleigh Sizing System

2014 marks the introduction of a new sizing system based on a database of bike fittings. Using our database of bike fittings helps better predict the frame dimensions for a bike size in a given height range. To use an example, our 56cm Revenio was designed using fit data from riders between 5’9” and 5’11”. The fit data is used to develop the geometry, but also determine correct handle bar width, bar reach, bar drop and crank lengths. The Raleigh Sizing System allows both customers and sales staff to determine the correct size quickly by checking the size decal that is on the bike.

Geometry

Bike performance is directly linked to shape and fit of a bike. Endurance riders demand fast bikes that are comfortable enough to pedal for hours, the Revenio and Capri meet those demands. The 2014 Revenio and Capri have received updated geometries in both the alloy and carbon versions. A key highlight includes the slackened seat angle, which shifts the rider’s center of gravity back and takes some weight off the handlebars. The result is reduced strain on wrists, elbows, neck and lower back. Less fatigue translates into improved stamina and comfort.

Size 52cm 54cm 56cm 58cm 60cm 62cm
Seat Tube Length ** 490.0mm 510.0mm 530.0mm 550.0mm 570.0mm 590.0mm
Standover Height 760.0mm 780.0mm 800.0mm 820.0mm 835.0mm 855.0mm
Top Tube Length * 525.0mm 545.0mm 560.0mm 575.0mm 590.0mm 605.0mm
Head Tube Length 145.0mm 165.0mm 180.0mm 200.0mm 215.0mm 230.0mm
Head Angle 71.0° 71.8° 72.3° 72.3° 72.5° 72.5°
Seat Angle 74.0° 73.0° 73.0° 72.8° 72.5° 72.5°
Chain Stay Length 410.0mm 410.0mm 410.0mm 410.0mm 410.0mm 410.0mm
Fork Offset 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm
BB Drop 72.5mm 70.0mm 70.0mm 67.5mm 67.5mm 67.5mm
Stem Length 90.0mm 90.0mm 100.0mm 100.0mm 110.0mm 110.0mm
Handlebar Width 400.0mm 420.0mm 420.0mm 420.0mm 440.0mm 440.0mm
Crank Length 170.0mm 172.5mm 172.5mm 175.0mm 175.0mm 175.0mm
Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm
* Measured Horizontally** Measured from Center

Technology: Revenio Series

The Scale is your friend

All Revenio bikes are lighter for 2014!

The Scale is your friend

SEATPOST

All parts of the bike are interconnected. Being able to fine-tune these parts synchronizes you with the bike. That's why we are introducing a new 20mm offset seat post for our road bikes. This adjustment (12mm more than last year) slightly shifts the rider position and complements the new geometry to produce big results: relief of arm, neck, and lower back stress.

SEATPOST

FORKS

All Revenio models feature revamped forks for improved stability and handling. All of the Revenio are spec'd with Raleigh custom all-carbon Monocoque tapered steerer forks. Other bikes in the fleet have either a new carbon-bonded 1.5" taper fork or a new chromoly fork (for the Revenio). We have created these new forks to give these endurance bikes the quick handling they deserve. All forks feature a 50mm offset to complement our new frame geometry. We adjusted the bikes' head angles to work with this new fork, and the result is a responsive, precise ride without any toe-overlap with the front wheel.

FORKS

Wheels

The wheels bring a spark of life to a bike, and all 2014 Revenio models are lighter, faster, and more stable with upgraded wheel sets. All wheels are stiffer and feature premium hubs and wider rims. All hubs are either Formula sealed-bearing hubs or new Formula hubs with Smooth Bearing Technology and CNC-machined dust caps to keep out the elements. The newly designed lightweight rims will either be the 23mm Weinmann Gmax, or the 21mm Aerodynamic Momentum. These upgrades allow riders to run lower tire pressure with less tire roll. This will enable faster and more confident cornering.

The Finite Element Advantage

The Finite Element Advantage

We love data, especially when the information gives us a competitive edge. We used the results from Finite Element Analysis (FEA), also known as "strength analysis," to optimize strength and stiffness as well as comfort. Consequently all 2014 aluminum and carbon Revenio frames feature updated seat stays, top and down tubes, and increased stiffness in the right spots for highly efficient and extremely comfortable road bikes.

Specs
Sizes 52cm  54cm  56cm  58cm  60cm  62cm
Frame Direct Connect T700 Carbon, Tapered Headtube and CDS Internal Cable Routing
Fork Full Carbon Monocoque 1-1/8" to 1.5" Taper
Headset FSA Integrated Cartridge Bearings
Cranks FSA Team Issue BB386 EVO 34/50t
Bottom Bracket FSA BB-EVO8681
F. Derailleur Shimano Ultegra
R. Derailleur Shimano Ultegra
Shifter Shimano Ultegra 11spd STI, Shimano SP41 Shift Housing
Cogset Shimano Ultegra 11spd (11-28t)
Chain Shimano Ultegra
Brakes Tektro Quartz Dual Pivot
Brake Levers Shimano Ultegra STI
Front Hub Formula RB93 Alloy QR Sealed Bearings 20h
Rear Hub Formula RB3811 Alloy QR, 4 Sealed Bearings, 11spd, 24H
Spokes 14/15g Stainless Double Butted MAC
Rims Weinmann Momentum Double Wall 21mm Wide
Tires Vittoria Rubino Pro Slick Folding 700x25c
Handlebar Raleigh 200 Series Road, 31.8 Short Drop
Grips Gel Tape
Stem Raleigh 200 Series, 3D Forged, 31.8
Seatpost Raleigh Carbon Series 27.2x300mm
Seat Prologo Nago EVO X-10 T2.0
Colors Raleigh Blue
Note Specifications Subject to Change
