2014 Militis Carbon Frameset
2014 Militis Carbon Frameset

2014 Militis Carbon Frameset

880 gram Direct Connect Carbon Evolution
Carbon Monocoque 1-1/8" to 1.5" Tapered Fork

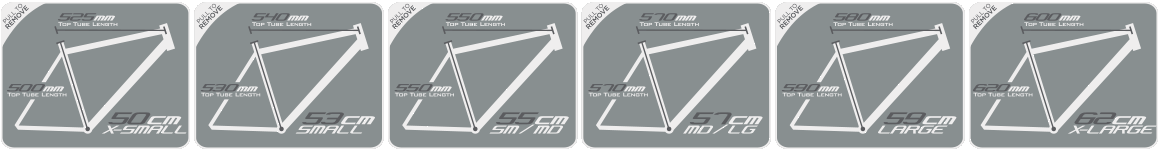

Size Guide: Militis


Size 50cm 53cm 55cm 57cm 59cm 62cm
Seat Tube Length ** 500.0mm 530.0mm 550.0mm 570.0mm 590.0mm 620.0mm
Standover Height 747.0mm 770.0mm 787.0mm 806.0mm 823.0mm 845.0mm
Top Tube Length * 525.0mm 540.0mm 550.0mm 570.0mm 580.0mm 600.0mm
Head Tube Length 115.0mm 135.0mm 150.0mm 170.0mm 185.0mm 200.0mm
Head Angle 73.0° 73.0° 73.5° 73.5° 73.5° 74.0°
Seat Angle 74.0° 73.5° 73.0° 73.0° 73.0° 72.5°
Chain Stay Length 408.0mm 408.0mm 408.0mm 408.0mm 408.0mm 408.0mm
Fork Offset 45.0mm 45.0mm 45.0mm 45.0mm 45.0mm 45.0mm
BB Drop 68.0mm 68.0mm 68.0mm 68.0mm 68.0mm 68.0mm
Stem Length 90.0mm 100.0mm 100.0mm 110.0mm 120.0mm 120.0mm
Handlebar Width 400.0mm 400.0mm 420.0mm 420.0mm 440.0mm 440.0mm
Crank Length 170.0mm 170.0mm 172.5mm 172.5mm 175.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Technology: 2014 Militis Series

Fast, Lightweight, Efficient

Carbon Frames

Carbon Frames

The layup for our Militis frames is a proprietary blend of high modulus fibers. More important than just using high grades of carbon, we use the right carbon in the right place. Pair this construction technique with a tapered headtube, oversized downtube and chainstays, and the result is an 880gram Militis that has all the stiffness where it counts. With the rigidity of the frame surrounding the drivetrain, these bikes launch forward with every pedal stroke. Making its way from the RXC Pro, the CDS plate inserts are added to the frames this year, allowing the Militis to be compatible with both electrical and mechanical cable systems.

Alloy Frames

Alloy Frames

Also making an introduction this year are two lightweight aluminum models, The Militis Elite and Militis Comp. The AL-6061 frames have a 1.5” tapered head tube and double butted tubes throughout, while small diameter seat stays are vertically compliant without sacrificing stiffness. These Militis Elite and Comp feature our most efficient, highly compliant, and lightest alloy race frames.


The Militis 4, 3, 2, Comp, and Elite have our 380 gram full carbon monocoque fork which allows the front end to be more stable at high speeds. More control means your favorite crit turns will be even more exhilarating.


The wheels bring a spark of life to a bike, and all 2014 Militis feature upgraded wheels from last year.The Militis 4, 3 and Comp feature race proven Mavic wheels. All other Militis models feature our new wheels with premium hubs and wider rims.The hubs are either Formula sealed-bearing hubs or the new Formula hubs with Smooth BearingTechnology with CNC-machined sealed dust caps for keeping out the elements. Rims are the 23mm wide Weinmann Gmax, or the 21mm wide aerodynamic Momentum.The 2014 Militis bikes are faster and lighter than ever with these new wheels, so set your sights on the podium!

Prologo Saddles

Ridden on by World Champions and grand tour winners, Prologo is a trusted name in the cycling race world. The lightweight and comfortable Prologo Zero saddles are featured across the entire Militis line of bikes this year. Packed with technology and striking looks, these saddles add the perfect complement to our fastest line of bikes.

Prologo Saddles

Sizes 50cm  53cm  55cm  57cm  59cm  62cm
Frame Direct Connect T800 Carbon Evolution w/PF30, Tapered Headtube and CDS Internal Cable Routing
Fork Full Carbon Monocoque 1-1/8"to 1.5" Taper
Headset FSA Integrated Cartridge Bearings
Bottom Bracket
F. Derailleur
R. Derailleur
Brake Levers
Front Hub
Rear Hub
Colors White/Carbon
Note Specifications Subject to Change
