2014 Roper
2014 Roper

2014 Roper

Cyclocross geometry and a steel frame make the Roper handle like a dream in an urban setting. That patch of single track that always taunts you as ride by will become the best part of your ride. Disc brakes and Shimano 105 drivetrain keep things running smooth.

Highlights
Cyclocross ready and commuter friendly
Weinmann Impulse double wall 32h Rims and sealed bearing hubs
Shimano 105 drivetrain
Schwalbe CX Comp tires
CX specific bar tape

Size Guide

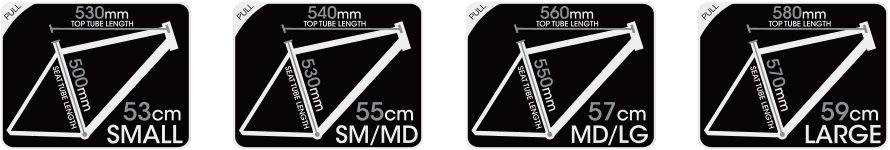

Geometry

Size 50cm 53cm 55cm 57cm 59cm
Seat Tube Length ** mm 500.0mm 530.0mm 550.0mm 570.0mm
Standover Height mm 780.0mm 790.0mm 815.0mm 835.0mm
Top Tube Length * mm 530.0mm 540.0mm 560.0mm 580.0mm
Head Tube Length mm 120.0mm 130.0mm 150.0mm 170.0mm
Head Angle ° 71.5° 72.0° 72.0° 72.0°
Seat Angle ° 74.5° 73.5° 73.0° 73.0°
Chain Stay Length mm 425.0mm 425.0mm 425.0mm 425.0mm
Fork Offset mm 45.0mm 45.0mm 45.0mm 45.0mm
BB Drop mm 60.0mm 60.0mm 60.0mm 60.0mm
Stem Length mm 90.0mm 105.0mm 105.0mm 105.0mm
Handlebar Width mm 400.0mm 420.0mm 420.0mm 440.0mm
Crank Length mm 170.0mm 172.5mm 172.5mm 175.0mm
Seat Post Length mm 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 50cm  53cm  55cm  57cm  59cm
Frame Seamless Butted Chromoly, Integrated Headtube w/PF30
Fork 4130 Chromoly Cross w/Disc Tabs
Headset FSA Integrated Cartridge Bearings
Cranks FSA Gossamer Pro BB30 50/34t
Bottom Bracket FSA BB30
F. Derailleur Shimano 105 FD-5700
R. Derailleur Shimano 105 RD-5700
Shifter Shimano 105 ST-5700 10spd STI, Shimano SP41 Shift housing
Cogset Shimano 105 CS-5700 (11-28t)
Chain KMC X10
Brakes Hayes CX 5 w/160mm Rotors
Brake Levers Shimano 105
Front Hub Novatech D711SB Alloy Sealed Bearing, Disc QR 32h
Rear Hub Novatech D712SB Alloy Sealed Bearing, Cassette, Disc QR 32h
Spokes 14g Stainless MAC w/Alloy Nipples
Rims Weinmann Impulse Double Wall 32h
Tires Schwalbe CX Comp Kevlar Guard, 700x35c
Handlebar Raleigh 200 Series 31.8 Short Drop, Widths: 40/42/44/44cm
Grips CX Specific Bar Tape
Stem Raleigh 200 Series, 3D Forged, 31.8, Lengths: 90/100/100/110mm
Seatpost Raleigh 2014 Alloy Dual Bolt 27.2x350mm, 20mm Offset
Seat Raleigh Classic Road
Colors Burnt Orange
Extras 2 Spokes and Nipples
Note Specifications Subject to Change
Colors
