The riser bar and stem of the Route series combined with a suspension fork provides an exceptionally comfortable, upright ride. Easy riding is made possible by the Shimano 8-speed components, Kenda Anti-Puncture tires and the all-new Selle Royal Lookin Saddle.

Highlights
AL-6061 Aluminum frame with city sport style geometry
Custom rack and fenders
Mechanical disc brakes
Selle Royal LookIn saddle
Shimano components with a wide range of gears

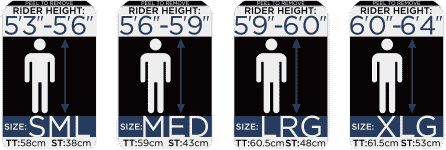

Size Guide: Route

Geometry

Size 15" SM 17" MD 19" LG 21" XL
Seat Tube Length ** 380.0mm 430.0mm 480.0mm 530.0mm
Standover Height 740.0mm 750.0mm 770.0mm 825.0mm
Top Tube Length * 580.0mm 590.0mm 605.0mm 615.0mm
Head Tube Length 120.0mm 140.0mm 165.0mm 190.0mm
Head Angle 70.0° 70.0° 70.0° 70.0°
Seat Angle 72.0° 72.0° 72.0° 72.0°
Chain Stay Length 455.0mm 455.0mm 455.0mm 455.0mm
Fork Offset 44.0mm 44.0mm 44.0mm 44.0mm
BB Drop 70.0mm 70.0mm 70.0mm 70.0mm
Stem Length 75.0mm 90.0mm 90.0mm 105.0mm
Handlebar Width 640.0mm 640.0mm 640.0mm 640.0mm
Crank Length 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length 350.0mm 350.0mm 400.0mm 400.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 15" SM  17" MD  19" LG  21" XL
Frame AL-6061 Aluminum, w/City Sport Geometry
Fork SR Suntour NEX HLO 63mm w/Hydraulic Lockout
Headset Threadless 1-1/8"
Cranks Shimano FC-M311 28/38/48t w/Chainguard
Bottom Bracket Sealed Cartridge Square Taper
F. Derailleur Shimano M310
R. Derailleur Shimano Alivio
Shifter Shimano ST-M310 Rapidfire Plus 8spd, Shimano SP41 Shift Housing
Cogset Shimano 8spd (11-32t)
Chain KMC 8spd
Brakes Tektro Novela Mechanical Disc, 160mm Rotors
Brake Levers Shimano ST-M310
Front Hub Joytech Alloy Disc QR 32h
Rear Hub Joytech Alloy Disc QR 32h Cassette
Spokes 14g Stainless Steel
Rims Weinmann XC260 Double Wall
Tires Kenda K192 w/PRC Anti-puncture and K-Shield 700x38c
Handlebar Alloy 80mm Rise x 640mm
Grips Raleigh Comfort
Stem Raleigh Alloy Forged, 15?
Seatpost Raleigh 100 Series 27.2x400mm
Seat Selle Royal Lookin
Colors Silver
Note Specifications Subject to Change
