Banked turns or bombing hills. Nothing feels as connected to the pavement and rider like a track bike. Made from 4130 chromoly steel, this bike is perhaps the best representation of bikes that we started making over 125 years ago.

Highlights
Track-specific geometry, Chromoly Frame/Fork
Alloy butted track-specific bars w/ track grips
Flip Flop Rear Hub w/ Freewheel
Bolt on hubs and deep dish rims
Raleigh classic road saddle

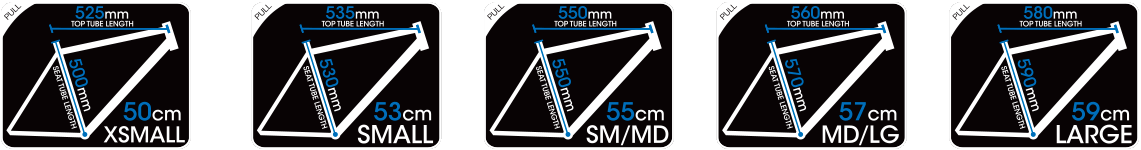

Size Guide: Rush Hour

Geometry

Size 50cm 53cm 55cm 57cm 59cm
Seat Tube Length ** 500.0mm 530.0mm 550.0mm 570.0mm 590.0mm
Standover Height 750.0mm 780.0mm 795.0mm 815.0mm 830.0mm
Top Tube Length * 525.0mm 535.0mm 550.0mm 560.0mm 580.0mm
Head Tube Length 80.0mm 110.0mm 127.0mm 145.0mm 163.0mm
Head Angle 73.5° 73.5° 73.5° 73.5° 73.5°
Seat Angle 75.0° 75.0° 74.5° 74.0° 74.0°
Chain Stay Length 400.0mm 400.0mm 400.0mm 400.0mm 400.0mm
Fork Offset 45.0mm 45.0mm 40.0mm 40.0mm 40.0mm
BB Drop 58.0mm 58.0mm 58.0mm 58.0mm 58.0mm
Stem Length 70.0mm 80.0mm 90.0mm 100.0mm 110.0mm
Handlebar Width 400.0mm 400.0mm 420.0mm 420.0mm 440.0mm
Crank Length 165.0mm 165.0mm 170.0mm 170.0mm 172.5mm
Seat Post Length 350.0mm 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 50cm  53cm  55cm  57cm  59cm
Frame 4130 Chromoly
Fork 4130 Chromoly Track
Headset Ahead 1-1/8" w/Alloy Cups
Cranks Alloy Track 46t 1/8"
Bottom Bracket FSA BB-7420 Square Taper
F. Derailleur N/A
R. Derailleur N/A
Shifter N/A
Cogset 16t Freewheel, 16t Cog
Chain KMC Z510 1/8"
Brakes Promax Dual Pivot w/Cartridge Pads
Brake Levers Tektro Inline RL570
Front Hub Joy Tech 32h w/Track Axle Nuts
Rear Hub Joy Tech 32H Flip/Flop w/Track Axle Nuts
Spokes 14g Stainless MAC
Rims Weinmann DP18 Double Wall
Tires Vittoria Zaffiro 700x23c
Handlebar 26.0 Alloy Butted Track
Grips Track Grips
Stem Alloy 3D Forged Ahead
Seatpost Alloy Micro Adjust 27.2x350mm
Seat Raleigh Classic Road
Colors Matte Black
Note Specifications Subject to Change
