2014 RX 1.0
2014 RX 1.0

2014 RX 1.0

This is the cross bike that gets everything started. From training rides and daily commutes, to pedal deep mud and barriers. The RX 1.0 started our passion for Cyclocross, and we know it'll do the same for you. The redesigned alloy RX frames are the lightest, highest performance aluminum cross frames we have made to date. The new tubeset with it's tapered headtube, Flat Oval downtube, Flat Oval seatstays and tapered seattube increase torsional stiffness while offering great vertical compliance. Ready to race alloy frames never looked so good.

Highlights
Ready to race out of the box
Wider and lighter rims with Formula smooth bearing hubs
Sram Apex with CX specific gearing
CX specific bar tape
Dual bolt 2014 alloy post

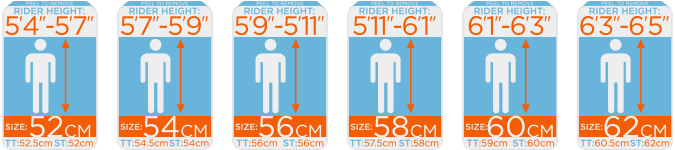

Size Guide: RX

Geometry

Size 52cm 54cm 56cm 58cm 60cm 62cm
Seat Tube Length ** 520.0mm 540.0mm 560.0mm 580.0mm 600.0mm 620.0mm
Standover Height 790.0mm 810.0mm 830.0mm 850.0mm 870.0mm 890.0mm
Top Tube Length * 525.0mm 545.0mm 560.0mm 575.0mm 590.0mm 605.0mm
Head Tube Length 110.0mm 135.0mm 150.0mm 175.0mm 190.0mm 210.0mm
Head Angle 71.5° 72.0° 72.5° 72.5° 72.5° 72.5°
Seat Angle 75.0° 73.5° 73.0° 73.0° 73.0° 72.5°
Chain Stay Length 425.0mm 425.0mm 425.0mm 425.0mm 425.0mm 425.0mm
Fork Offset 45.0mm 45.0mm 45.0mm 45.0mm 45.0mm 45.0mm
BB Drop 67.5mm 65.0mm 65.0mm 62.5mm 62.5mm 62.5mm
Stem Length 90.0mm 90.0mm 100.0mm 100.0mm 110.0mm 110.0mm
Handlebar Width 400.0mm 420.0mm 420.0mm 420.0mm 440.0mm 440.0mm
Crank Length 170.0mm 172.5mm 172.5mm 175.0mm 175.0mm 175.0mm
Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm

* Measured Horizontally** Measured from Center

Technology: RX 2014 Series

The Scale is your friend

All the RX bikes got lighter for 2014!

The Scale is your friend

Carbon Frames

The RXC Pro Disc continues to use our Raleigh exclusive Direct Connect High Modulus carbon frame. The layup for our RXC frames is a blend of high modulus fibers. More important than merely high grades of carbon, we use the right carbon in the right place. Cable routing is compatible with electrical and mechanical cable systems courtesy of our CDS plates. The RXC Disc features the same top level frame at a more affordable price point.

ALLOY Frames

The RX alloy frames are the lightest and highest performance aluminum cross frames we have made to date. The AL-6061 frames have a 1.5˝ tapered headtube and a tapered butted seattube for increased torsional stiffness. Our new ˝Flat Oval˝ double butted and formed downtube in combination with our Flat Oval seatstays increase torsional stiffness while offering great vertical compliance. Ready-to-race alloy frames never looked so good.

ALLOY Frames

Wheels

Wheels

All our Cross bikes get new wheels in 2014. The RXC Pro Disc and RXC Disc have light and race proven American Classic wheels. The RX 2.0 and RX 1.0 have all new, lighter and stiffer wheels with better hubs and wider rims. The Impulse is a disc specific 23mm wide rim and the XP Elite is a canti specific 23mm wide rim. The wider rim cross section spreads the tread contact patch and will allow riders to run lower tire pressure with less tire roll. This creates a larger contact patch and therefore allows riders to corner faster with more confidence. Our new wheels are race-ready as they are perfectly paired with Clement or Schwalbe tires.

RX 2.0 hubs are Novatec sealed bearing hubs ready for any cross conditions you can throw at them. The RX 1.0 has new Formula hubs with Smooth Bearing Technology and CNC machined dust caps with improved sealing.

Forks

The RXC Pro Disc will keep its ENVE Composites fork. The RXC Disc features an all new Raleigh Carbon monocoque fork with 1.5" taper and Post-Mount tabs.

The RX 2.0 has a new Raleigh carbon fork with tapered steerer and Post- Mount tabs. The RX 1.0 features a new Raleigh carbon fork with tapered steerer. As you could probably guess, all Raleigh forks are lighter in 2014.

Forks

Seatpost

For 2014 we redesigned the Raleigh seatpost. The new post has 20mm offset which increased from 8mm. The most notable new feature is that all bikes will have a dual-bolt seatpost. No matter how hard a rider remounts the bike, the saddle will never tilt up or down.

Seatpost

Bar Tape

It may seem like a small detail, but all bikes feature a new cross-specific handle bar tape. Last season we had several riders test the new CX tape and the rubbery material provided outstanding grip in all conditions: wet, dry, cold, hot or muddy. The soft backing material improves shock absorption for dry and bumpy courses.

Bar Tape

Specs
Sizes 52cm  54cm  56cm  58cm  60cm  62cm
Frame AL-6061 Butted Alloy w/PF30, Tapered Headtube
Fork Raleigh Custom Cross, Carbon Composite w/Alloy Steer Tube, Canti Boss
Headset FSA Integrated Cartridge Bearings w/Cable Guide
Cranks FSA Gossamer Cross BB30 46/36t
Bottom Bracket FSA PF30
F. Derailleur SRAM Apex
R. Derailleur SRAM Apex
Shifter SRAM Apex 10spd, Shimano SP41 Shift Housing
Cogset SRAM PG1030 (11-28t)
Chain SRAM PC1031
Brakes Tektro CR710 Canti, w/Cartridge Pads
Brake Levers SRAM Apex Shifter Brake Lever
Front Hub Formula Smooth Bearing Alloy, QR 28h
Rear Hub Formula Smooth Bearing Alloy, QR, 28h, Cassette
Spokes 14g Stainless MAC w/Alloy Nipples
Rims Weinmann XP Elite Double Wall 28h
Tires Schwalbe Racing Ralph Performance Folding, 700x33c
Handlebar Raleigh 200 Series 31.8 Short Drop, Widths:40/42/42/42/44/44cm
Grips CX Specific Bar Tape
Stem Raleigh 200 Series, 3D Forged, 31.8, Lengths:90/90/100/100/110/110mm
Seatpost Raleigh 2014 Alloy Dual Bolt 27.2x300mm, 20mm Offset
Seat Raleigh Cross Saddle
Colors Sky Blue
Note Specifications Subject to Change
