2014 Singulus
2014 Singulus

2014 Singulus

Are you looking to push yourself against the clock? The Singulus is the time trial/triathalon bike that will get you started down that road. With tri-saddle, aero-bars, stiff allow frame the Singulus is perfect for the veteran or the beginner.

Highlights
Aero Alloy frame with TT geometry and carbon fork
Internal cable routing
Lighter Wheels with Wider Rims
Time trial bars
Sram Apex drivetrain

Size Guide: Singulus

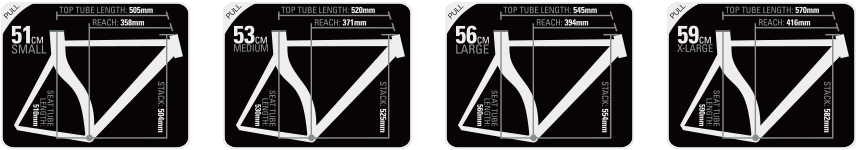

Geometry

Size 51cm 53cm 56cm 59cm
Seat Tube Length ** 510.0mm 530.0mm 560.0mm 590.0mm
Standover Height mm mm mm mm
Top Tube Length * 505.0mm 520.0mm 545.0mm 570.0mm
Head Tube Length 100.0mm 120.0mm 150.0mm 180.0mm
Head Angle 72.5° 73.0° 73.0° 73.0°
Seat Angle 76.0° 76.0° 76.0° 76.0°
Chain Stay Length 387.0mm 387.0mm 387.0mm 387.0mm
Fork Offset 40.0mm 40.0mm 40.0mm 40.0mm
BB Drop 70.0mm 70.0mm 70.0mm 70.0mm
Stem Length 90.0mm 100.0mm 100.0mm 110.0mm
Handlebar Width 400.0mm 420.0mm 420.0mm 440.0mm
Crank Length 170.0mm 172.5mm 172.5mm 175.0mm
Seat Post Length 250.0mm 250.0mm 250.0mm 250.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 51cm  53cm  56cm  59cm
Frame AL-6061 Hydroformed Aero Tubing
Fork 700c Aero Fork w/ Carbon Lowers and Alloy Crown 1-1/8"
Headset FSA Integrated Cartridge Bearings
Cranks FSA Omega Compact 34/50t
Bottom Bracket FSA MegaExo
F. Derailleur SRAM Apex
R. Derailleur SRAM Apex
Shifter SRAM SL-500 Aero 10spd
Cogset SRAM PG1050 10sp (11-28t)
Chain KMC X10
Brakes FSA Gossamer Dual Pivot
Brake Levers Tektro RX 4.1
Front Hub Formula Alloy QR, 24h
Rear Hub Formula Alloy QR, 28h Cassette
Spokes 14/15g Stainless Double Butted MAC
Rims Weinmann Momentum Double Wall 21mm Wide
Tires Vittoria Zaffiro Pro Slick Folding 700x23c
Handlebar 6061 Time Trial Bar w/165mm Reach
Grips Gel Tape
Stem Avenir 200 Series, 3D Forged, 31.8
Seatpost Aero 6061
Seat Raleigh Tri Saddle
Colors Silver/White
Note Specifications Subject to Change
