2014 Venture 4.0 Womens
2014 Venture 4.0 Womens

2014 Venture 4.0 Womens

Comfort is the name of the game when it comes to the Venture series. Equipped with riser bars, a comfort saddle and a micro adjust suspension seatpost riding can be fun. Comfort isn’t the only thing that makes the bike, you still have to go, which is why we use Shimano MegaRange gears to help you conquer the next hill. The Venture makes your cycling experience extremely enjoyable and comfortable. Available in both a men's and women's specific frame design.

Highlights
Aluminum frame with comfort geometry
SR Suntour fork helps smooth out the ride
Riser bars with an adjustable stem to easily customize the fit
Selle Royal LookIn comfort saddle
Full Shimano drivetrain

Size Guide: Venture

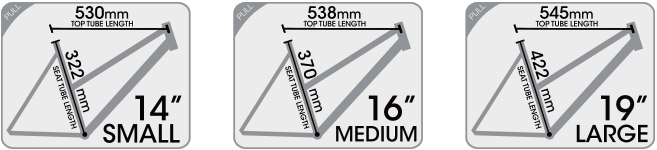

Geometry

Size 14" WSM 16" WMD 19" WLG
Seat Tube Length ** 332.0mm 347.0mm 442.0mm
Standover Height 580.0mm 580.0mm 580.0mm
Top Tube Length * 530.0mm 538.0mm 545.0mm
Head Tube Length 160.0mm 160.0mm 160.0mm
Head Angle 70.0° 70.0° 70.0°
Seat Angle 73.0° 73.0° 73.0°
Chain Stay Length 438.0mm 438.0mm 438.0mm
Fork Offset 44.0mm 44.0mm 44.0mm
BB Drop 45.0mm 45.0mm 45.0mm
Stem Length 80.0mm 80.0mm 100.0mm
Handlebar Width 630.0mm 630.0mm 630.0mm
Crank Length 170.0mm 170.0mm 170.0mm
Seat Post Length 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 14" WSM  16" WMD  19" WLG
Frame AL-6061 Aluminum, Comfort Geometry
Fork SR NEX 100mm w/Preload Adjust
Headset Threaded 1-1/8"
Cranks Shimano FC-M171 48/38/28t
Bottom Bracket Sealed Cartridge 68/122
F. Derailleur Shimano TX-51
R. Derailleur Shimano Altus
Shifter Shimano EF-51 EZ Fire 8spd
Cogset SRAM PG830 8spd (11-32t)
Chain KMC 8sp
Brakes Promax Alloy V-Brake V-Brake
Brake Levers Shimano EF-51
Front Hub Joytech Alloy QR 32h
Rear Hub Shimano RM30 32h Cassette
Spokes 14g Stainless Steel
Rims Weinmann XC260 Double Wall
Tires Kenda K841A w/Kshield 26x1.95
Handlebar Steel Comfort Riser
Grips Raleigh Comfort
Stem Alloy Adjust Quill
Seatpost Alloy Micro Adjust Bootless Suspension 27.2x350mm
Seat Selle Royal Lookin Comfort
Colors Green |  Light Purple |
Extras Rack and Fender Mounts, Water Bottle Mounts
Note Specifications Subject to Change
Colors
Green
Green
Light Purple
Light Purple
