2014 Venture Womens
2014 Venture Womens

2014 Venture Womens

Comfort is the name of the game when it comes to the Venture series. Equiped with riser bars, a comfort saddle and a micro adjust suspension seatpost riding can be fun. Comfort isn’t the only thing that makes the bike, you still have to go, which is why we use Shimano MegaRange gears to help you conquer the next hill. The Venture makes your cycling experience extremely enjoyable and comfortable. Available in both a men's and women's specific frame design.

Highlights
Comfort specific geometry
Riser bars and stem for an upright ride
Suspension seatpost and comfort saddle
Shimano MegaRange gears for easy riding
Kenda multi-use tires

Size Guide: Venture

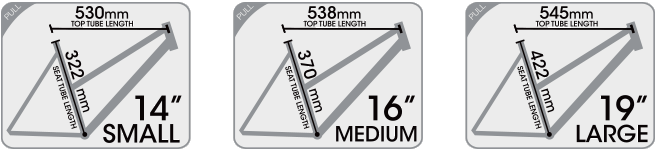

Geometry

Size 14" WSM 16" WMD 19" WLG
Seat Tube Length ** 332.0mm 347.0mm 442.0mm
Standover Height 580.0mm 580.0mm 580.0mm
Top Tube Length * 530.0mm 538.0mm 545.0mm
Head Tube Length 160.0mm 160.0mm 160.0mm
Head Angle 70.0° 70.0° 70.0°
Seat Angle 73.0° 73.0° 73.0°
Chain Stay Length 438.0mm 438.0mm 438.0mm
Fork Offset 44.0mm 44.0mm 44.0mm
BB Drop 45.0mm 45.0mm 45.0mm
Stem Length 80.0mm 80.0mm 100.0mm
Handlebar Width 630.0mm 630.0mm 630.0mm
Crank Length 170.0mm 170.0mm 170.0mm
Seat Post Length 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 14" WSM  16" WMD  19" WLG
Frame Steel Comfort Geometry
Fork OS Steel Threaded
Headset Threaded 1-1/8"
Cranks Prowheel 40t w/Double Guard
Bottom Bracket Sealed Square Taper
F. Derailleur N/A
R. Derailleur Shimano TX-35
Shifter Shimano SL-RS31 Revo 7spd
Cogset Shimano MF-TZ31 7spd MegaRange (14-34t)
Chain KMC 7sp
Brakes Promax Alloy V-Brake
Brake Levers Alloy V-Brake
Front Hub Joytech Alloy QR 32h
Rear Hub Joytech Alloy QR 32h
Spokes 14g Stainless Steel
Rims Weinmann CN-520
Tires Kenda K841A 26x1.95
Handlebar Steel Comfort Riser
Grips Raleigh Comfort
Stem Alloy Quill
Seatpost Alloy Micro Adjust Suspension 25.6x350mm
Seat Raleigh Comfort
Colors Light Blue |  White |
Extras Rack and Fender Mounts, Water Bottle Mounts
Note Specifications Subject to Change
Colors
Light Blue
Light Blue
White
White
