2014 Tamland 2
2014 Tamland 2

2014 Tamland 2

We created a bike that will take you farther than where the road ends. Designed specifically for long rides in harsh conditions the Tamland begs for the road less traveled. Reynolds 631 Double Butted Chromoly tubing and longer chainstays with lower bottom bracket make the Tamland handle the high speeds and loose gravel with ease. We also use a 40c Clement adventure tire that makes sure you float over the rough stuff.

Highlights
Reynolds 631 Chromoly frame with gravel race geometry
TRP Spyre dual sided mechanical disc brakes
Clement MSO 40c folding tires
Shimano Ultegra 11sp components
FSA Energy stem and compact handle bar

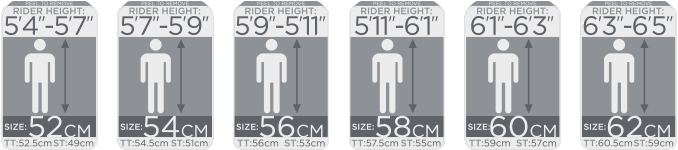

Size Guide: Tamland

Geometry

Size 52cm 54cm 56cm 58cm 60cm 62cm
Seat Tube Length ** 490.0mm 510.0mm 530.0mm 550.0mm 570.0mm 590.0mm
Standover Height 770.0mm 790.0mm 810.0mm 830.0mm 845.0mm 860.0mm
Top Tube Length * 525.0mm 545.0mm 560.0mm 575.0mm 590.0mm 605.0mm
Head Tube Length 100.0mm 120.0mm 135.0mm 155.0mm 170.0mm 185.0mm
Head Angle 71.0° 71.0° 71.0° 71.5° 71.5° 71.5°
Seat Angle 74.0° 73.0° 73.0° 72.5° 72.5° 72.5°
Chain Stay Length 440.0mm 440.0mm 440.0mm 440.0mm 440.0mm 440.0mm
Fork Offset 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm 50.0mm
BB Drop 77.5mm 75.0mm 75.0mm 72.5mm 72.5mm 72.5mm
Stem Length 90.0mm 90.0mm 100.0mm 100.0mm 110.0mm 110.0mm
Handlebar Width 400.0mm 420.0mm 420.0mm 420.0mm 440.0mm 440.0mm
Crank Length 170.0mm 170.0mm 172.5mm 172.5mm 175.0mm 175.0mm
Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm 300.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 52cm  54cm  56cm  58cm  60cm  62cm
Frame Reynolds 631 Double Butted Chromoly, Eng BB, 1-1/8" HT
Fork 4130 Chromoly Gravel, 50mm Offset w/Disc Tabs, 1-1/8"
Headset FSA Orbit MX Sealed Bearing, 1-1/8"
Cranks Shimano Ultegra FC-6800, 52-36t
Bottom Bracket Shimano External
F. Derailleur Shimano Ultegra FD-6800
R. Derailleur Shimano Ultegra RD-6800, GS 11sp
Shifter Shimano Ultegra ST-6800, 11sp, Shimano SP41 Shift Housing
Cogset Shimano Ultegra CS-6800, 11-32t
Chain Shimano Ultegra, CN-6800, 11sp
Brakes TRP Spyre dual sided mechanical disc brakes, 160mm Rotors
Brake Levers Shimano Ultegra
Front Hub Novatech D711SB Alloy Sealed Bearing, Disc QR 32h
Rear Hub Novatech D712SB Alloy Sealed Bearing, ABG Cassette Body, Disc QR 32h
Spokes 14g Stainless MAC w/Alloy Nipples
Rims Weinmann KMax Pro, DW, Single Eyelet
Tires Clement XPlor MSO, 700x40c, 120TPI
Handlebar FSA Energy Compact, D:125mm R:80mm, 40/42/44cm Widths
Grips CX Specific Bar Tape
Stem FSA Energy, 31.8mm, 90/100/110mm Lengths
Seatpost Raleigh 2014 Alloy Dual Bolt 27.2x350mm, 20mm Offset
Seat Prologo Kappa Evo
Colors Red/White
Note Specifications Subject to Change
