This internal 3spd has the look of a simple single speed but gives you the gearing that makes it a little easier to get around. The 4130 Chromoly frame is a tough platform built to take abuse without abusing your wallet. Rack and fenders are an easy install as well.

Highlights
Cyclocross ready and commuter friendly
Weinmann Impulse double wall 32h Rims
Shimano Internal 3sp rear disc hub
Flat bars and Raleigh stem
Mechanical disc brakes

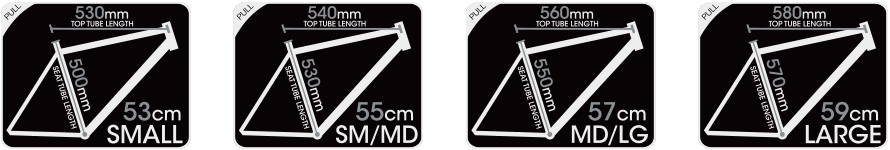

Size Guide

Geometry

Size 50cm 53cm 55cm 57cm 59cm
Seat Tube Length ** mm 500.0mm 530.0mm 550.0mm 570.0mm
Standover Height mm 780.0mm 790.0mm 815.0mm 835.0mm
Top Tube Length * mm 530.0mm 540.0mm 560.0mm 580.0mm
Head Tube Length mm 120.0mm 130.0mm 150.0mm 170.0mm
Head Angle ° 71.5° 72.0° 72.0° 72.0°
Seat Angle ° 74.5° 73.5° 73.0° 73.0°
Chain Stay Length mm 425.0mm 425.0mm 425.0mm 425.0mm
Fork Offset mm 45.0mm 45.0mm 45.0mm 45.0mm
BB Drop mm 60.0mm 60.0mm 60.0mm 60.0mm
Stem Length mm 90.0mm 100.0mm 100.0mm 110.0mm
Handlebar Width mm 400.0mm 420.0mm 420.0mm 440.0mm
Crank Length mm 170.0mm 170.0mm 170.0mm 170.0mm
Seat Post Length mm 350.0mm 350.0mm 350.0mm 350.0mm

* Measured Horizontally** Measured from Center

Specs
Sizes 50cm  53cm  55cm  57cm  59cm
Frame Seamless Butted Chromoly, Integrated Headtube w/PF30
Fork 4130 Chromoly Cross w/Disc Tabs
Headset FSA Integrated Cartridge Bearings
Cranks Shimano Alfine FC-S500 39t
Bottom Bracket FSA PF30 Eccentric w/Sealed Bearings
F. Derailleur N/A
R. Derailleur N/A
Shifter Shimano Nexus Revo Shift, Shimano SP41 Shift Housing
Cogset Shimano 20t Internal Hub Cog
Chain KMC Z99
Brakes Shimano M375 w/RT53 160mm Center Lock Disc
Brake Levers Promax 2 Finger Alloy
Front Hub Shimano HB-RM35 32h w/Center Lock Disc Mounts
Rear Hub Shimano 3-Speed Nexus SG-3D55 w/Center Lock 32h
Spokes 14g Stainless MAC w/Alloy Nipples
Rims Weinmann Impulse Double Wall 32h
Tires Schwalbe CX Comp Kevlar Guard, 700x35c
Handlebar 6061 Double-butted Flat Bar, 31.8, width 54cm
Grips Small Diamond
Stem Raleigh 200 Series, 3D Forged, 31.8, Lengths: 90/100/100/110mm
Seatpost Raleigh 2014 Alloy Dual Bolt 27.2x350mm, 20mm Offset
Seat Raleigh Classic Road
Colors Dark Blue-Green
Extras 2 Spokes and Nipples
Note Specifications Subject to Change
